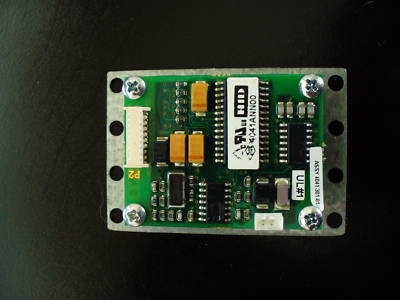

Hid eprox 125KHZ prox reader module low power
* Low Power Consumption - With the ability to be operated via battery power, the eProxLock typically draws a current of 12uA during its sleep mode. When a card is presented, the module awakes from its sleep mode and draws 36mA during a 250ms card read. Supply 4 to 10 VDC to the module either via power supply or battery connection.
* Keyless Lock - With its small size and low power consumption, the eProx Lock can provide a keyless, card-activated lock.
* Data Outputs - Available in Wiegand,
* Security Recognizes card formats up to 85 bits, with over 137 billion unique codes.
1.3" x 1.7" x .281" (33.02 x 43.18 x 7.13 mm)
Thickness at antenna connector = 0.401" (10.18 mm)
Four or Six 1.5 VAA or One 9 V battery may be used
30 mA max, 12 ?A typical during "Sleep" Mode
80 mA max, 36 mA typical for 250 mSec during RF Card Read
5% to 95% relative humidity noncondensing
OEM is responsible for Regulatory
