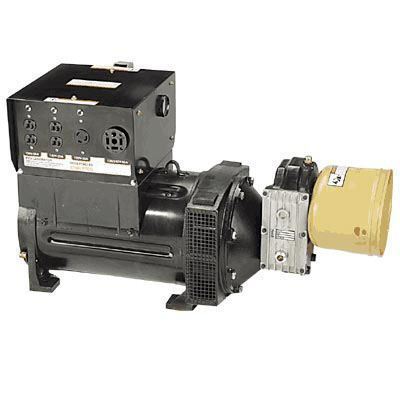

Generator - pto powered - 27.5 kw - 27,500 watts
27.5 kW (27,500 Watts) - 120/240V - Single Phase - Heavy Duty all Steel Housing
* Heavy Duty 27,500 Watt - 120/240V - Single Phase PTO Driven Generator
* We carry a full line of PTO Generators from 7.2 kW to 150 kW in single and three phase configurations
* Heavy duty single phase engine generates 200 Amps @ 120V and 100 Amps @ 240V simultaneously
* Requires 48 PTO HP engine minimum at 540 RPM
* 100 Amp thermal magnetic breaker and plastic shield
* Outlets include welding receptacle and four 120V 20 Amp receptacles and voltmeter
* Pushbutton reset circuit breakers
* Required Engine: 48 PTO HP (540 RPM) or more
* Rated Watts: 24 kW (24,000 Watts) Continuous Watts
* Surge Watts: 27.5 kW (27,500 Watts) Surge Watts
* Four 20 Amp 120V receptacles
* One 30 Amp 120V receptacle
* One 50 Amp 120/240V straight blade receptacle
* One 100 Amp 120/240V pin and sleeve
* Uses NEMA 5-20R, NEMA L5-30R and NEMA 14-50R straight blade
* 200 Amps @ 120V and 100 Amps @ 240V simultaneously
* Oil level indicator, cast iron with sight glass gearbox
* Brushless design, less than 5% Total Harmonic Distortion
* Overall Dimensions: 39" L x 24" W x 26" H
