60" x 480" farrel two-wheel swing rest roll grinder

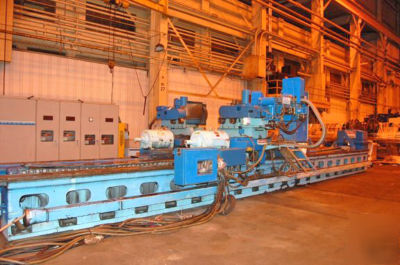

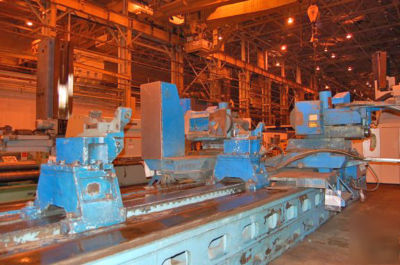

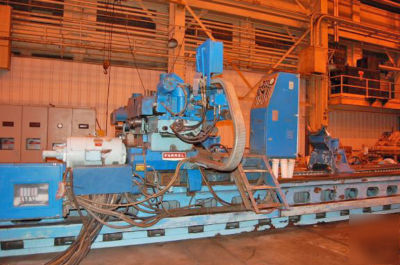

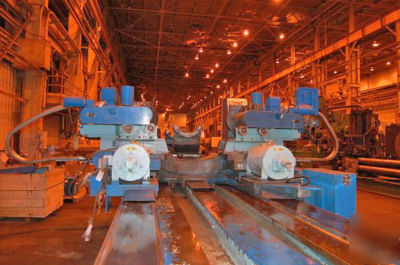

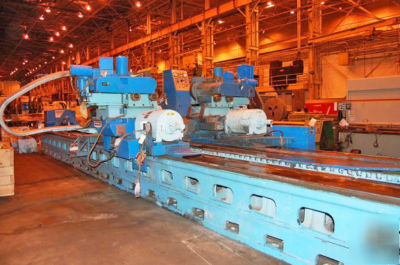

60" x 480" FARREL Two-Wheel Swing Rest Roll Grinder
Roll Diameter Ground on Center ........ 8"-55"
Roll Diameter Ground Above Center ..... 72"
Roll Nominal Face Length .............. 480"
Grinding Wheel Traverse Length ........ 480"
Grinding Wheel Maximum Size ........... 20" x 3"
Headstock Motor ....................... 25 HP
Normal Grind ........................ 400 / 1600 RPM
Slow Speed With Blower .............. 25 / 400 RPM
Roll Speed, Normal .................... 6/24 RPM
Roll Speed, Slow ..................... .375 / 6 RPM
Traverse Motor ........................ 5 HP
Carriage Speed ........................ 2-60 IPM
Tilt Infeed Motor ..................... .5 HP
Wheel Infeed ......................... .0001 / .010 IPM
One Turn of Tilt Infeed Handwheel .... .017 Wheel Infeed
Total Range of Tilt Infeed ........... .415 Wheel Infeed
One Turn of Manual Infeed Handwheel .. .083 Wheel Infeed
Electronic Crowning w/ Updated Electronics
Stone Grinding on Front and Rear
Variable Crown Roll Drive Unit
Electronic Caliper and Recorder
