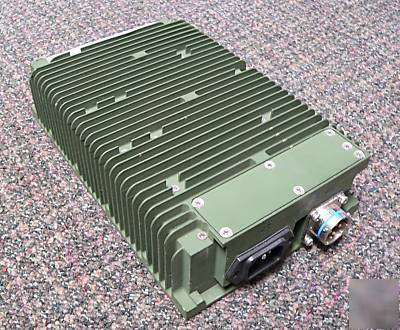

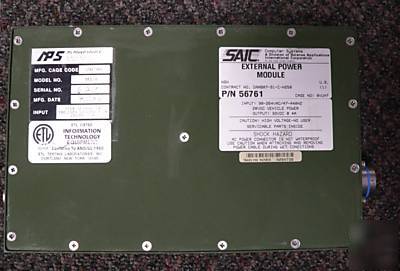

Power supply, ac/dc input 90-264 in 32 v out M429, M449
Power Supply, AC/DC Input, 150 Watt
Auto Crossover from AC to DC when Mains Fail
when AC is present the 700 mA Battery Charger Output keeps the Battery charged. If both AC and DC ore hooked up the unit uses the AC until the AC power goes down.

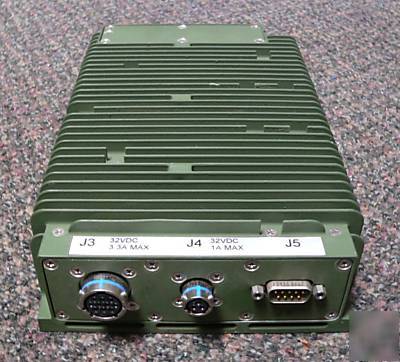

Output #3 700 mA (Battery Charge)
New Item, Never Used, New Condition
Sorry - No International Sales
Military, Ruggedized, Telecom, Industrial
of which one is used as a charger.
Fixed switching frequency (330 KHz)
Indefinite short circuit protection with
Meets or exceeds MIL-STD-810E,
264 VAC, 47 440 Hz, Single Phase
Operates from either or both AC and DC inputs
(if both are applied, the AC input is selected)
All models meet or exceed (no damage)
MIL-STD-1275A (100V for 50 mSec, 9V for 1 Sec)
MIL-STD-704A, MIL-STD-704D (80V for 0.1 Sec)
Efficiency: up to 85% (DC input) & 75% (AC input)
Meets or exceeds MIL-STD-461D,
2000V between AC Input and Output
2000V between AC Input and Case
200V between DC Input and Case
Less than 2% (no load to full load, 25
Ripple and Noise: 500mVp-p, typical (max. 2%)
Current limiting (Foldback & Hiccup):
Continuous protection for unlimited time.
For More Technical Data Sheet See: http:// /catalogs/M449cat.pdf
