Magnetek filament power transformer #f-41X

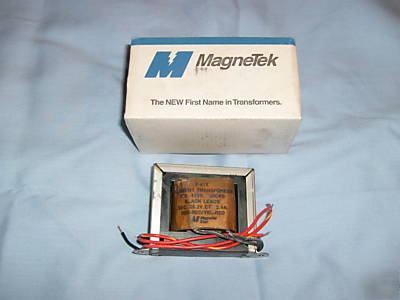

Magnetek Filament Power Transformer #F-41X
The F-41X is part of a series which has a long history of reliable service in the field, made from a proven design and constructed with UL recognized materials. Wound on a single channel nylon bobbin. Materials are UL recognized, Class B (130 degrees C) rated. These products are 100% hipot tested with an insulation of 1500V between primary and secondary windings as well as between the primary / secondary windings and the core.
* Electrical Specifications (@25C)
* Secondary: 25.2VCT @ 2.00 amps
* RMS Test Voltage: 1500 sec.
* Voltage Regulation: 10% TYP @ full load to no load
* Temperature Rise: 35C TYP (45C MAX allowed)
* Dimensions: 2-19/32"H X 4"W X 2-1/4"D
* Mounting Dimensions: 3-9/16" MW
