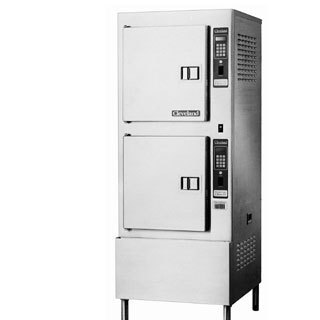

Cleveland 24CGA10 pressureless convection steamer, gas,
Pressureless Convection Steamer, Gas, Two Compartments, 5 Pans Per Compartment, SteamCraft Ultra 10 Series
Steamcraft Ultra 10 Convection Steamer, pressureless, gas, 2 compartments, (5) 12 x 20 x 2 1/2 pans/compartment cap., electro-mechanical 60 min. timers, 1 standard treated & tap water connection, s/s construction, 6" adjustable legs w/flanged feet, 125,000BTU
* Cleveland Range SteamCraft Ultra 10 Two Compartment Floor Model Pressureless Convection Steamer, Gas Steam Generators, 125M BTU
* Innovative PowerPak Gas Steam Generator: Unique 125,000 BTU, 80% efficient Vertical Atmospheric Generator Design, only uses 75M BTU when one compartment is used. Strong 14 Gauge Stainless Steel Construction. Large
* 7.5 gallon generator reservoir for high speed cooking production. Fully insulated rear mounted steam generator.
* Easy Access Cleaning Port: Generator Cleaning Port located on the outside, top of the unit
* Instant Steam Stand By Mode: Hold generator at a steaming temperature. Allows unit to start cooking instantly
* Durable 14 Gauge, 304 Stainless Steel Construction: For compartment door, cavity and steam generator
* Two 60 Minute Electro-Mechanical Timers and Switches for manual operation: Audible signal for cooking time completion. (MCS)
* Main Power On/Off Switch: Automatically fills generator with water, then ignites gas burners via a fully automatic Electronic Spark Ignition (pilotless) to start generator.
* Automatic Generator Drain: Contains a "Water Jet" Spray Rinse Drain cleaning Cycle to keep drain clear
* Exclusive Automatic Probe for Water Level Control: Separate from the generator for easy access, contains a high velocity rinse cycle to eliminate mineral buildup
* Exclusive "Cool to the Touch" Two-Piece Compartment Door Design: Free floating inner door with reversible gasket provides an air tight seal. Stainless Steel Slam/Latch Door Latch mechanism for reliability
* Condensate Drip Trough: Provide under lower compartment door to collect condensate
* Left Hand Door Hinging: Compartment Doors hinged on the left, controls on the right
