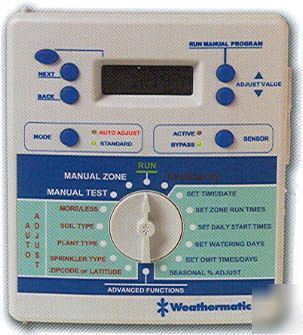

Weathermatic SL1624 24 fixed station in/out controller
Brand New Complete WeatherMatic Smartline 24 Zone Fixed Station In/Out Controller (Controller Comes With the Necessary Hardware for 24 Zone System )
Indoor/Outdoor rated with mounting bracket included
Hot swappable modules can be added/removed without resetting or unplugging the controller
2 run modes: Standard mode runs user input zone run times; Auto Adjust mode requires SLW Series On-Site Weather Monitor to calculate weather based run times in replacement of user input zone run times
Rain/Freeze sensor bypass/active button located on face panel displays sensor status with red/orange/ green tri-color LEDs (red indicates sensor is prohibiting irrigation; orange indicates paused for run/soak or zone-to-zone delay; green indicates normal operation)
4 programs: A, B, C; program D can operate concurrently.
Non-volatile memory retains programs in the event of power outage
Zone run times settable from 1 minute to 9 hours 55 minutes with operation count down displayed in hours, minutes, and seconds (zone run times replaced with weather based calculated values in Auto Adjust mode)
Watering day selections of custom days of the week, odd/even, or interval days
Omit settings of omit times of the day, omitted days of the week, and up to 7 omitted calendar dates
Outdoor/indoor rated with a mounting bracket included.
Seasonal % adjust by program, by month for simple year round water budgeting (monthly percentages not used in Auto Adjust mode)
On-board Multi-Meter performs diagnostic test function by displaying electrical readings for each solenoid in milliamps (mA), transformer 24V power reading (V), and 9V battery voltage (V)
Built-in Valve Locator - locate hidden valves by simply listening for the audible chatter of the solenoid created by a unique electrical current
Run/Soak Settings - virtually eliminate run off by setting the maximum allowable run time (1 - 30 min.) and required soak time (1 min. to 2 hrs.) for each program.
Progammable delay feature suspends watering from 1 to 7 days.
Zone to zone delay programmable from 1 min. to 3 hrs.
Master valve to zone delay timing sequence is settable for master valve activation (1 sec. to 1 min.) and deactivation (1 sec. to 3 min.)
Clear program function to delete all program settings
Review menu displays accumulated ET deficits by zone (displayed in inches) and corresponding zone run times for the next available run time
Built-in Valve Locator - Locate hidden valves by simply listening for the audible chatter of the solenoid created by a unique electrical current *
On-Board Multi-Meter - Displays the electrical current reading of each zone for quick troubleshooting and a proactive approach to maintenance *
Master Valve/Pump Settings - Achieve hydraulic control with settings for zone to zone delays and master valve timing *
Manual Test Settings in Seconds - Complete a walk-thru in a fraction of the normal time by running a manual test set to as little as 10 seconds/zone
Manual test runs each zone with zone run times from 10 sec. up to 10 min.
Manual zone operation of a single zone (1 min. to 9 hrs. 55 min.)
Push button manual start of a program from control panel
