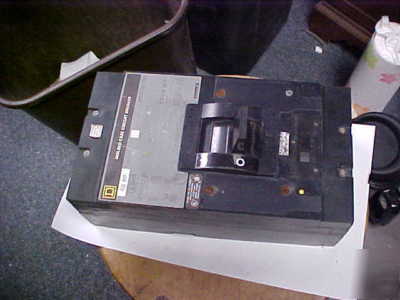

Square d 400 amp 3 pole breaker LAL36400 *183
Specifications: Square D SQD LAL36400
ADJUSTABLE TRIP, MOLDED CASE, THERMAL MAGNETIC; L FRAME; 600 VAC AT 50/60 HZ, 250 VDC; 400 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 42 KILOAMPERE AT 240 VAC, 30 KILOAMPERE AT 480/480 STAR/277 VAC, 22 KILOAMPERE AT 600/600 STAR/347 VAC, 10 KILOAMPERE AT 250 VDC (UL, CSA); 20 KILOAMPERE AT 415/240 VAC (IEC); TERMINAL ALUMINUM/COPPER LINE LUG, LOAD LUG; SIZE 6 INCH W X 5.84 INCH D X 11 INCH H; APPROVAL UL, CSA; LAL MODEL; AC MAGNETIC TRIP SETTING 2000 AMPERE LOW, 4000 AMPERE HIGH; ICS RATING 5 KILOAMPERE AT 415/240 VAC
