Mitsubishi AL2-24MR-d plc controller + got 1020 hmi +
Here i have for sale is the following package

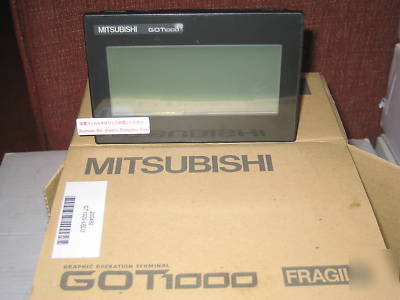

MITSUBISHI GT1020-LBD2 HMI TOUCH SCREEN
MITSUBISHI AL2-GSM-CAB (CONNECTS AL2-24MR-D PLC TO GT1020-LBD2 HMI TOUCH SCREEN)
MITSUBISHI GT10-RS2TUSB-5S INC DRIVER DISC AND GT09-C30USB-5P (NEEDED TO CONNECT GOT 1020 HMI TO A PC FOR PROGRAMMING)
WHEN THESE 2 ARE CONNECTED TOGETHER YOU CAN ALTER TIMERS CREATE ON SCREEN SWITCHES ITS A VERY CHEAP WAY OF CREATING AN AUTOMATED SYSTEM.
SORRY I HAVE NO SOFTWARE AVAILABLE BUT WOULD RECOMMEND GOT LITE FOR HMI.
If you would like the plc and the got pre programming to do some thing specific just let me know your requirements and if its not beyond me i will do it before sending
http://download.mitsubishi-automation.com/resources/manuals/GOT1000_JY997D39201.pdf?form_submit=View+now
http:// .au/assets/IASW/gt1020_flier.pdf

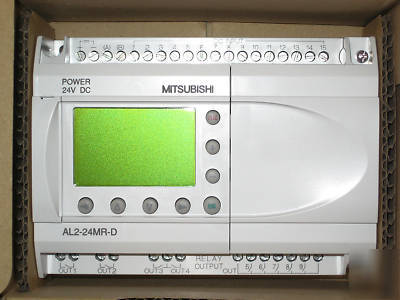

Alpha Programmable Controller
* 15 Digital inputs, 8 of the inputs can be used as Analog 0-10 VDC and 2 high speed counters
* 9 Relay Output 8 Amp 250 VAC
* Simplicity - Performs PLC functions, such as math, logic, timers, clocks, counters, smith trigger, flicker, etc.
* Program directly on the unit, or via optional VLS Windows software
* Built-in LCD screen for programming panel or operator interface functions
* Graphical "function block" programming, with drag and drop icons
* Integrated calendar/clock function. Summer time set
* Real Time Clock with 4 digit year
* Expansion Boards AS-i interface options
* Input can be "on/off" or 8-bit, 0-10 VDC
* Input impedance 142 k.Ohm Response time Max 10 ms
* Dimensions 4.91 x 3.5 x 2.16 inch (124.6 x 90 x 55 mm)
* Extended operating temperature range to -25 +55 C
* Can also be connected to an external touch screen such as the GOT 1020
