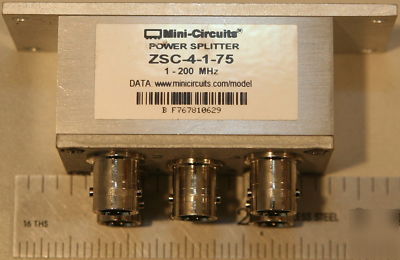

Mini-Circuits ZSC-4-1-75 Power Splitter/Combiner
Applications: HF/VHF, Radio Communication
Mini-Circuits ZSC-4-1-75 Specifications:
* Isolation, Low Range: 30 dB Typ., 20 dB Min.
* Isolation, Mid Range: 25 dB Typ., 20 dB Min.
* Isolation, Upper Range: 25 dB Typ., 20 dB Min.
* Insertion Loss Above 6.0 dB, Low Range: 0.4 Typ. 0.7 Max
* Insertion Loss Above 6.0 dB, Mid Range: 0.5 Typ. 0.8 Max
* Insertion Loss Above 6.0 dB, Upper Range: 0.7 Typ. 1.2 Max
* Phase Unbalance, Low Range: 4 Max.
* Phase Unbalance, Mid Range: 6 Max.
* Phase Unbalance, Upper Range: 10 Max.
* Amplitude Unbalance, Low Range: 0.15 dB Max.
* Amplitude Unbalance, Mid Range: 0.2 dB Max.
* Amplitude Unbalance, Upper Range: 0.3 dB Max.
Mini-Circuits ZSC-4-1-75 Datasheet:
