Hp 8753C 85046A network analyzer 300KHZ-3GHZ

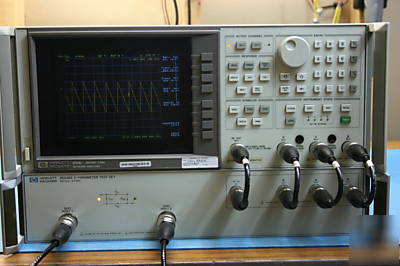

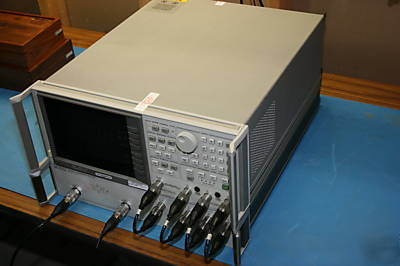

HP Agilent 8753C Vector Network Analyzer, 300khz - 3Ghz
With 85046A S-parameter test set

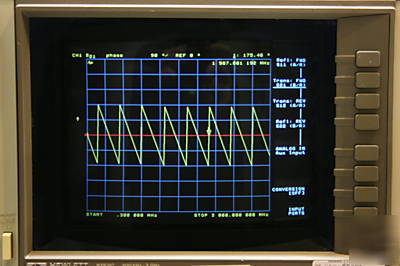

Description: The Agilent 8753C network analyzer combined with a test set provides a complete solution for characterizing linear behavior of either active or passive networks, devices, or components from 300 kHz up to 3 GHz. With two independent display channels available, you can simultaneously measure and view the reflection and transmission characteristics of the device under test in overlay or split-screen format on the crisp color display. The easy-to-use soft key selection of measurement functions allows you to measure the magnitude, phase, or group delay characteristics. Combine this unit with a test set provides you with the capability to simultaneously measure the transmission and reflection characteristics
* Internal source 300 kHz to 3 GHz with 1 Hz resolution
