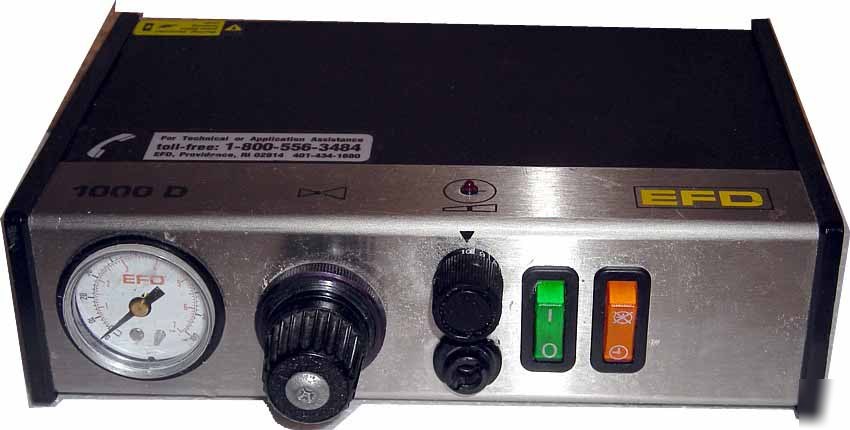

Efd 1000D precision fluid dispenser complete kit
The 1000D dispenser increases yields and reduces rejects in assembly processes by using a timed air pulse to apply the same amount of adhesive, caulk or other liquid or paste on every part. It can also be used with a "pressure pot" storage system to provide the heart of a very precise filling or injection system for markers, paint pens, etc.
Unlike hand syringes, dental picks and other manual tools that rely on operator judgment to control the amount of adhesive applied, precision timer in the 1000D makes it easy for any worker to make accurate, consistent deposits.
This complete ready to use dispensing system includes:
* Foot switch in tested working condition - may or may not be the one shown in the photo
* 10 of the10cc syringes with 1 new connector hose and barrel diaphragms to prevent fluid flow-back into the dispenser
* 8 assorted dispensing tips
* All you need to provide is compressed air, a fluid or paste needing dispensing, and regular 120 volt AC house current.
A free manual for this unit is available from EFD - just click here.
Here are the specs for this dispenser directly from EFD's website.
100/120/220 VAC, 50/60 Hz 16/13 VA
Air output: 0 to 100 psi (0 to 6.9 bar)
Initiation: maintained or momentary
Time Range: programmable (seconds)
0.005 to 0.04 sec.; 0.01 to 1.0 sec.; 0.1 to 10 sec.;
0.2 to 20 sec.; 0.3 to 31 sec.
If this unit fails to function properly, please return it to me. At my expense I will at my option, either repair the unit, or refund the price of the unit (I will deduct $35 for the footswitch if it is not returned with the unit; the hoses and barrels are yours to keep in any event) or replace it with a unit of similar functionality (the unit will be EFD, but may or may not be the same model).
In the event of a refund, I will keep the defective unit that was returned for repair.
After repairing the unit, the warranty will run until the expiration of the original warranty.
