Altera cpld develope studying tool + atmel isp download
UP for sale is 1 set of Altera CPLD Developing and studying tool.
* DC power can be any AC or DC 8~15V or DC+5V on 5V port
* CPLD clock controlled by on board MCU HT46R47, can be adjusted from 0 to Maximum frequency.
* This develop board supports ALTERA EPM7128SLC(PLCC84) EPM7064SLC(PLCC68);EPM7064SLC/EPM7032(PLCC44)
* Four 7 segment display units for digital display experimental
* 2 group 16 LED circuit, for more display capabilities. Such as LED running light test
* Adjustable motor drive PWM output. A selectable motor control source either MCU or CPLD
* One channel analog adjustable voltage input. MCU PA port output the 9 bit digital voltage for CPLD
* On board prototyping area for more user testing
* On board RS232 port with MAX232 converter

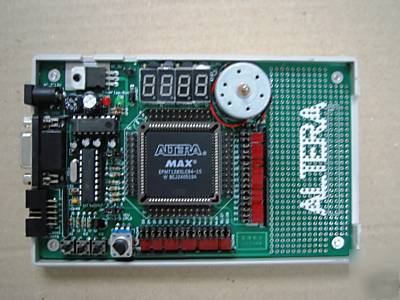

* One Altera CPLD Development Board with EPM7128SLC84 on board
* One JTAG download Byte Blaster dongle
* One EPM7064_PLCC68 chip adapter PCB
* One EPM7032, EPM7064 PLCC44 and EPM128SLC_84 chip adapter PCB
* One CD for schematic, demo code etc.
