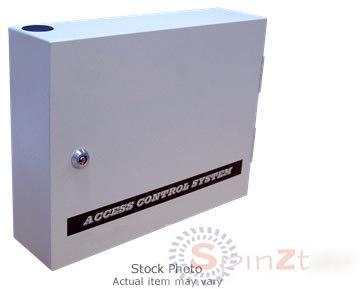

Access control sixteen door networking controller
Access control sixteen door networking controller
This network ready access control panel has all the features you need in one package. Interface with up to 16 door control boxes and eliminate expansion boards and external network controller hardware.
On-board network interface
Programmable card expiration supported
16 RS485 readers supported
Serial interface: RS485, 9600 baud, N, 8, 13
3 connections, 2 for readers, 1 for PC
Anti-pass back supported with
Auto diagnostic: No user intervention necessary
Dynamic door assignment supported
Emergency door release supported
2 Wiegand readers supported
Scheduled door release supported
Scheduled door arming supported
Relay inputs: 4 (expandable to 16), 3A
Relay outputs: 4 (expandable to 16), 3A
Voltage: 9-24VDC variable auto detection
Temperature/humidity: -10 C - 50 C (14 F - 122 F) @ 0-90% non-condensing
Dimensions: 180mm x 231mm x 62mm (7.09" x 9.09" x 2.44")
Optional I/O expansion board available for 8 more door in/door out devices.
A great match with any of our proximity card readers.
Manuals and Documentations(when available):
ACC1000 Manual 09.pdf (3796407 bytes)
ECl Access Control Software Manual.pdf (14428407 bytes)
