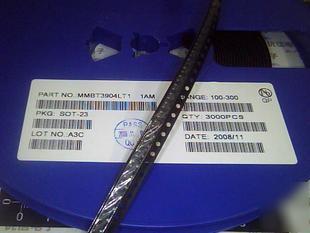

100 surface mount transistor(npn silicon) MMBT3904L T1
General Purpose Transistor(NPN Silicon) MMBT3904L T1 SOT-23
Collector Emitter Voltage VCEO 40 Vdc
Collector Base Voltage VCBO 60 Vdc
Emitter Base Voltage VEBO 6.0 Vdc
Collector Current Continuous IC 200 mAdc
Characteristic Symbol Max Unit
Total Device Dissipation FR 5 Board
Thermal Resistance Junction to Ambient R JA 556C/W
Alumina Substrate, (Note 2) TA = 25C
Thermal Resistance Junction to Ambient R JA 417C/W
Junction and Storage Temperature TJ, Tstg 55 to
http://pdf.dzsc.com/88888/2006626161652774.pdf
