Smart mobile phone battery analyzer battery tester plus

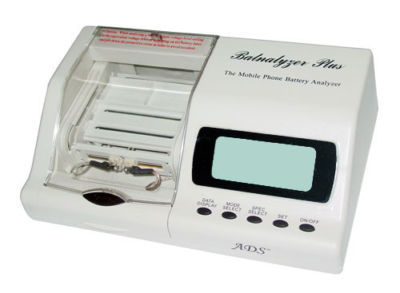

The Mobile Phone Battery Analyzer
-The latest version of the Original-
iWebPhoto.com - Free Photo Upload, Free Image Hosting, Free Flash Slideshows iWebPhoto.com - Free Photo Upload, Free Image Hosting, Free Flash Slideshows
The Mobile Phone Battery Analyzer since2001
with new and upgraded software [08.1C series programmed] inside
To meet the latest and near future changes in battery industy
Identify substandard and unsafe battery immediately
One adaptor fits all mobile phone battery
Analyzer Allowable Cell Types
Ni-MH/Ni-CD 2.4V 3.6V 4.8V 6.0V 7.2V
Li-ion/Li-Polymer 3.6V (3.7V) 7.2V (7.4V)
Batnalyzer Plus has 4 fine characteristics, it is comprehensive, accurate, fast and simple. Hold a battery in the all-battery adaptor within the instrument, push a few buttons to start running a quick test on the battery, within 15 seconds, the instrument will tell you the voltage and the resistance of a battery, whether it carries a short-circuit protection device and whether it functions in charging and discharging. To know more, just run a full test, in about 1-2 hours (the length of time depends on the capacity of a battery and how full it is), the instrument tells you the capacity, the length of time it takes to charge and discharge the battery, whether the battery carries an overcharging protection device or an over-discharging protection device. On top of these, all test results can be printed out via a printer linked with a computer.
Batnazlyer Plus also has the following independent functions: quick charging which allows you to charge any battery in a short time; slow charging which allows you to charge any battery to the full although it takes a little longer; reactivating which allows you to reactivate a battery that has been put aside for some time and cannot be charged with a normal charger; and finally discharging which allows you to discharge a battery for some specific purpose.
Test Short Circuit Protection
Test Charging / Discharging Function
Test Overcharging / Overdischarging Protection
Best of its kinds to test mobile phone, digital camera/camcorder, PDA and some other portable telecom/audio/video equipment battery packs.
The original ADS Batnalyzer has won a lot of prestige over the past years on its accuracy and rel iability in analyzing mobile phone battery packs. The all-batteries adaptor is a master-piece design which allows anyone testing a mobile phone battery pack of any made and any model at anywhere in the world.
Batnalyzer Plus is made in Shen Zhen, P.R.C. It is safe and convenient to use and is highly accurate. The entire production is carried out in accord with ISO9002.
Model WXJ-A+ (the Chinese version of Batnalyzer Plus) was granted with an official permit for production of measurement equipment in Shen Zhen. It is fully recognized by Ministry of Information Industry and General Administration of Quality Supervision, Inspection and Quarantine of P.R.C. as an instrument capable of judging the quality of a mobile phone battery authoritatively in China. Its accuracy to totally acceptable in China and all over the world.
Batnalyzer Plus Battery Analyzer (included the adapter) 1
Independent Color Box Packing 1
Output Voltage DC 13.5V or18V (to suit different models)
Consumption Wattage Less than 10W
Net Weight 0.89 kg (not including the power supply)
Do not operate in high temperature or high humidity environment;
Do not move the machine while tests are run;
Please use the original DC 13.5V or 18V power supply;
Must power off when changing batteries.
