Shop fox® M1004 9"X49" vertical mill w/ pwr feed & dro

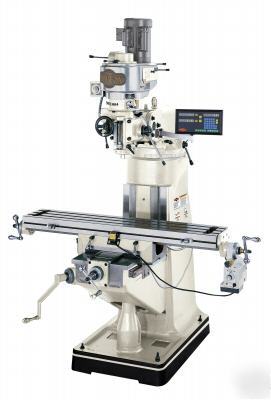

Shop Fox M1004 9" x 49" Vertical Milling Machine w/ Power Feed and Digital Read Out
M1004 - SHOP FOX VERTICAL MILL 9" X 49" W/DRO
Weighing in at over 2400 lbs of cast iron and hardened precision ground steel, Model M1004 has the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3 speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. This brute has both power and finesse! For added performance, the M1004 includes a 2 axis digital readout with up to 5 m resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points.
* Quill feeds/spindle rev.: .0019", .0035", .0058"
* Auto stop with micro adjustable stop
* Hardened and ground table surface
* Chrome plated, precision ground quill
* Adjustable micrometer quill depth stop
* Motor: 2 HP, 110V/220V, single-phase, TEFC, prewired to 220V
* Table travel (longitudinal): 27"
* Max. dist. spindle to table: 18-3/4"
* Max. dist. spindle to column: 18-1/2"
* Head swivel: 90 both ways
* T-slots: 3 on 2-1/2" centers, 1/2" studs
* Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
