Reliance electro-craft E286 servo motor 12/1

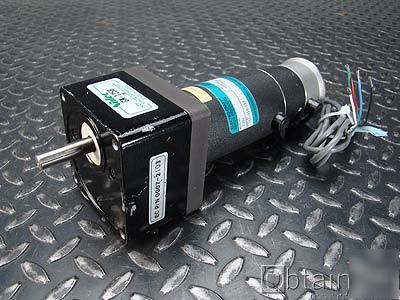

Reliance Electro-Craft E286 Servo Motor 12/1
Removed from decommissioned equipment, Seems to be in good shape.
Motor has been powered only by us with no problems.
Nidec GM-125B Gear Reducer, we think the gear reduction is 12 to 1.
Reliance Electro-Craft E286 Servo Motor with what we think is a tachometer.
Here are some specs we found on the web that we think are for this motor -
Torque Constant - 7.68 oz-in/A
Voltage Constant - .12-6.26 v/krpm
Max terminal voltage - 28 volts DC
Max cont speed (no load) - 5900 rpm
Max peak torque - 240 oz-in
Max peak current - 4.7 amps
Inertia - 0.0052 oz-in sec2
Voltage Constant - 12.5-15.4 v/krpm
