Pulnix camera - model tm-7CN
* Shutter from 1/60 to 1/10,000 (externally selectable)
* Externally adjustable manual gain, AGC, gamma, and field/frame select

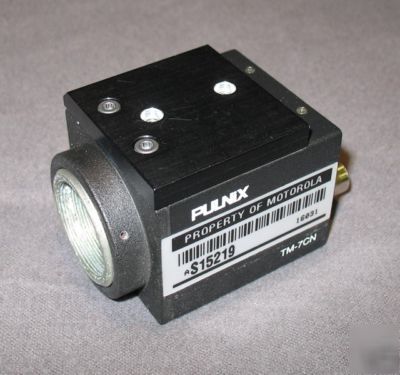

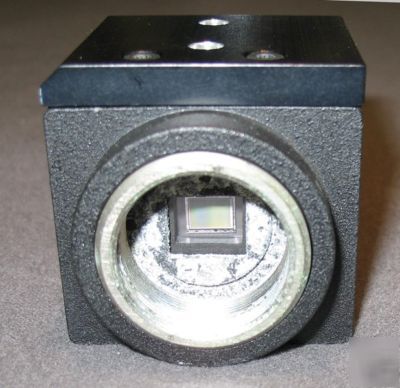

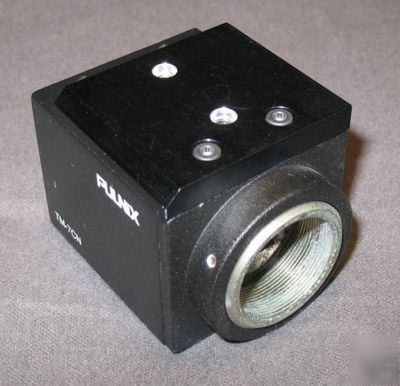

The TM-7CN offers a high resolution interline transfer 1/2" CCD imager in a small, very rugged package. The size of the TM-7CN eliminates the need for a remote imager camera in all but the most confined spaces.

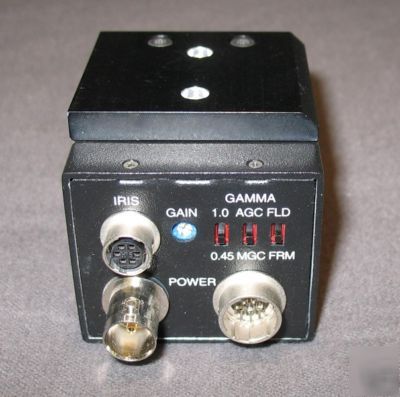

Designed to meet a variety of application requirements, the most commonly needed adjustments, such as gain, gamma, AGC, and field/frame selection, are easily accessible on the rear camera panel. C-mount is also standard.
The camera allows for the external selection of eight different shutter speeds (1/60 sec. to 1/10,000 sec.) by attaching the SC-745 Shutter Controller to the 6-pin connector located on the rear of the camera. Pixel clock output is a standard feature. The camera also includes auto iris outputs and accepts a simple reset that is asynchronous but without a shutter.
Dimensions (H x W x L): 39 x 46 x 61 mm
