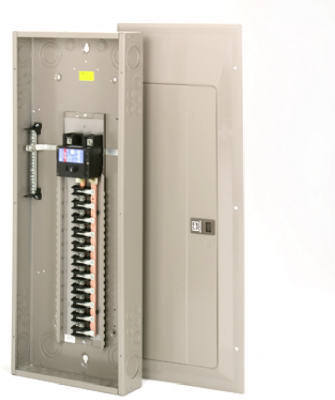

Eaton CH42B200KP 42-circuit 200A breaker loadcenter
42 Circuit, 200A Main Breaker, Loadcenter - Indoor. Sheet steel enclosure. Single phase, 3 wire, factory bonded split neutral, 42 (3/4") spaces, 42 poles, 120/240 volt. Main breaker type csr at 25,000 air when used with ch, cht or chp branch breakers. Solid copper bus bar. Twin neutral with cross bus. Unus ed neutral connections may be used for termination of equipment grounds. Listed for use as service equipment with twin neutral doubling as neutral/ground; remove bonding strap for separate neutral/ground bars for sub-feed applications. Includes combinatio n surface/flush cover. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted sandalwood. Rotate enclosure and trim 180 degrees for bottom feed. U.L. Listed file e8741.
