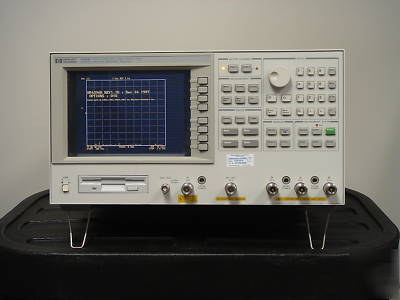

Agilent 4396B/010/1D5 1800MHZ network/spectrum/impedanc
* High-performance network, spectrum, and impedance analyzers in a single box
* GPIB port, digital I/O port
* Frequency range: 100 kHz to 1.8 GHz
* 120 dB dynamic range @ 10 Hz IFBW
* +/- 0.05 dB, +/- 0.3 degree dynamic accuracy
* Frequency range: 2 Hz to 1.8 GHz
* -147 dBm/Hz sensitivity @ 1 GHz
* Lower than +/- 1.0 dB level accuracy
* Time-gated spectrum analysis option (4396B-1D6)
Impedance Analysis (Option 4396B-010)
* Equivalent circuit analysis function
