5" giddings & lewis h-5-t horizontal boring mill

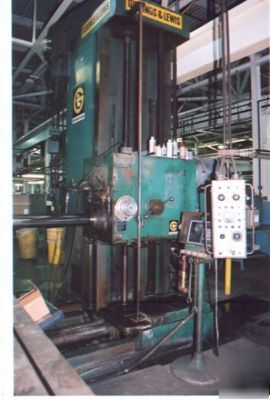

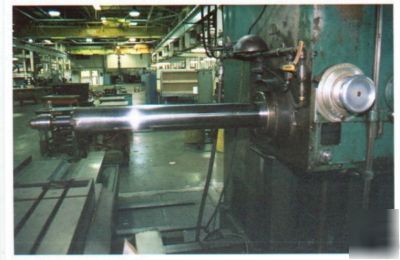

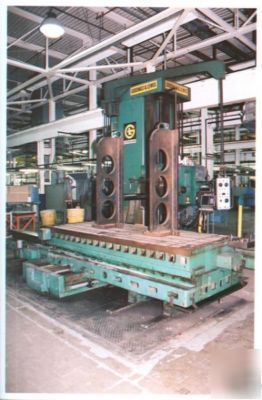

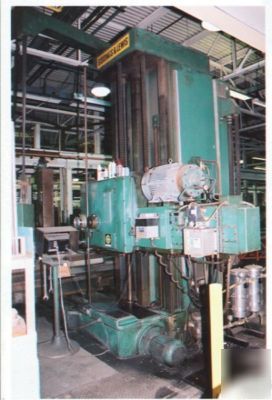

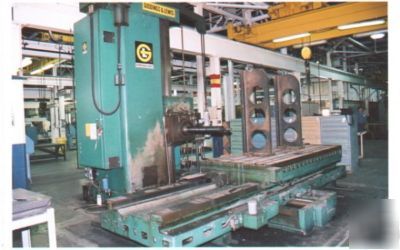

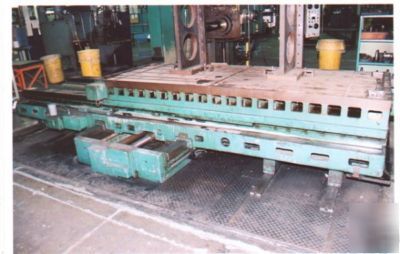

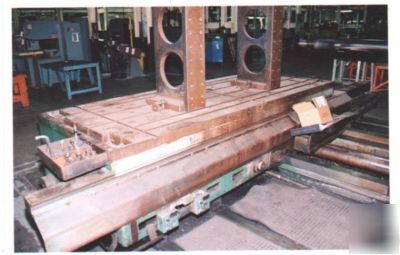

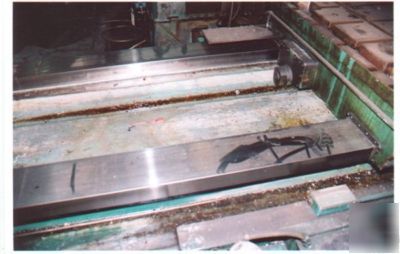

5" GIDDINGS & LEWIS H-5-T Table Type Horizontal Boring Mill, S/N 420-312-78, New 1978 Diameter of spindle 5.12" Taper in spindle No.50 power draw bar Spindle traverse 36" Headstock vertical travel 72" Table working surface 48 x 122" Table cross travel 108" Bed length 96" Saddle length 193" Saddle longitudinal travel 44 " (38) Spindle speeds 5.6-1020 R.P.M. (16) Feeds .0007-.250 I.P.R. 32) Milling feeds .012-.120 IPM Rapid traverse rate, all movements 120 I.P.M.

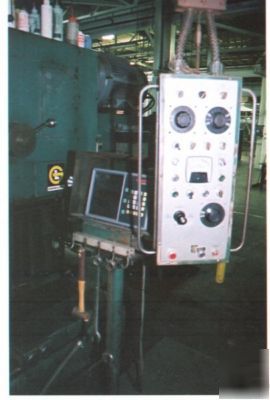

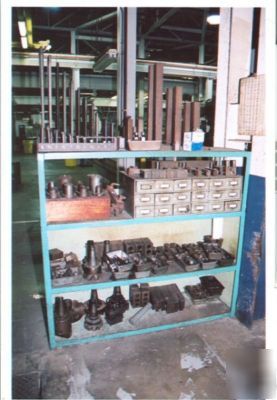

EQUIPPED WITH: No.50 power draw bar 4-axes ball screws Hardened bed and saddle ways 3-way column Double hardened in-the-floor out board saddle supports Full pendant control with Joy-stick Spindle take-up collet Work light Flood coolant Trabon automatic lubrication Tapping capability 3-axes Anilam Wizard 450 digital readout Seals and Verniers (12)No.50 end mill holders (1)No.50 holder with drill chuck (6)No.50 cutter holder (1)No.50 adjustable boring head Miscellaneous end mills, cutters and tooling Set-up and Tie-down tooling 40 HP 3/60/220-440 volt Main Drive Motor 3/60/460 Volt electrics
Approximate Weight: 74,500 Lbs.
Price F.O.B. Truck, Wilmington, DE $ 139,500.00
