14"x 36" grand rapids #566 horizontal surface grinder

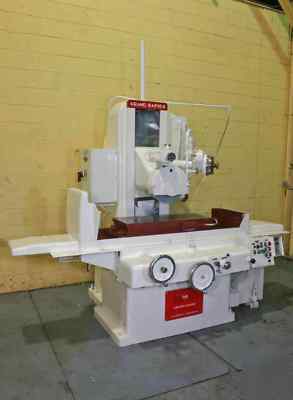

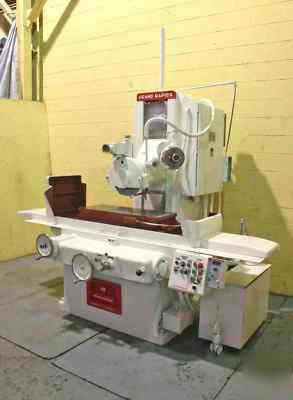

14" X 36" GRAND RAPIDS MODEL #566 HORIZONTAL SURFACE GRINDER
SERIAL ............................ 566-145
NEW ............................... 1967
MODEL ............................. 566
CAPACITY .......................... 14" X 36"
MAXIMUM UNDER WHEEL ............... 24"
MAXIMUM LONGITUDINAL TRAVEL ....... 47-1/2"
MAXIMUM CROSS TRAVEL .............. 15-3/4"

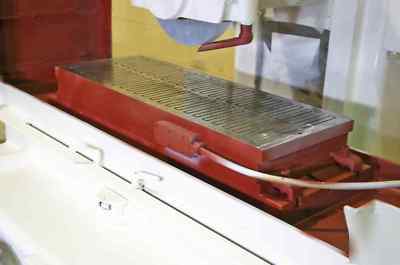

ELECTRO-MAGNETIC CHUCK SIZE ....... 14" X 36" X 4-1/2"
TABLE SPEED (VARIABLE) ............ 3 TO 150 FPM

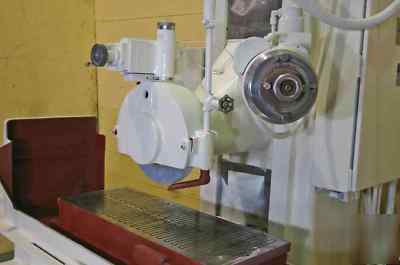

GRINDING WHEEL SIZE ............... 14" X 1-1/2" X 5"
SPINDLE SPEED ..................... 1750 RPM
POWER SPINDLE ELEVATION ........... YES
AUTO INCREMENTAL DOWN FEED ........ YES
AUTO CROSS FEED ................... YES
SPINDLE MOTOR ..................... 7-1/2 HORSEPOWER
HYDRAULIC MOTOR ................... 3 HORSEPOWER
