Sma female connector with nut crimp RG58 LMR195 CFD200

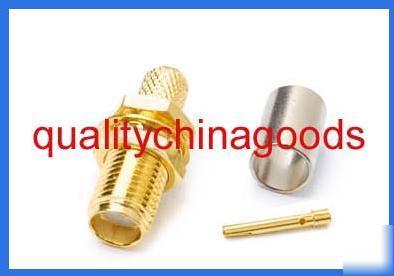

SMA female Crimp connector RG58 LMR195 CFD200 Goldplated
SMA connectors, short for SubMiniature Version A, are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4 GHz with flexible cable. SMA connectors feature screw-type coupling. Semi-Rigid cabling extends the frequency range of the device to 18GHz. SMA connectors offer broadband performance with low reflections and constant 50 ohm impedance. These properties, along with minimum attenuation and low VSWR have made the SMA connector extremely popular in the microwave community. LTI SMA connectors are designed to conform to MIL-C-39012 specifications.
Temp.range...................-65 +165 (PE Cable - +85)
Vibration...................... MIL-STD-202,Method 213
Impedanec......................50
Frequency Range..............DC 12.4GHz(0 18GHz)
Working Voltage..............335V max
Withstand Voltage.......... 1000V rms
Center Contact................ 3m
Outer Contact................. 2m
Insulation resistance....... 5000 m
Insertion loss ................ 0.15 dB/6GHz
VSWR Straight............... 1.10+0.002f
Right angle ............. 1.20+0.003f
Durability(mating)........... 500 (cycles)
inner conductor beryllium or tin brass goldplated
crimping suite copper alloy nicked or goldplated
