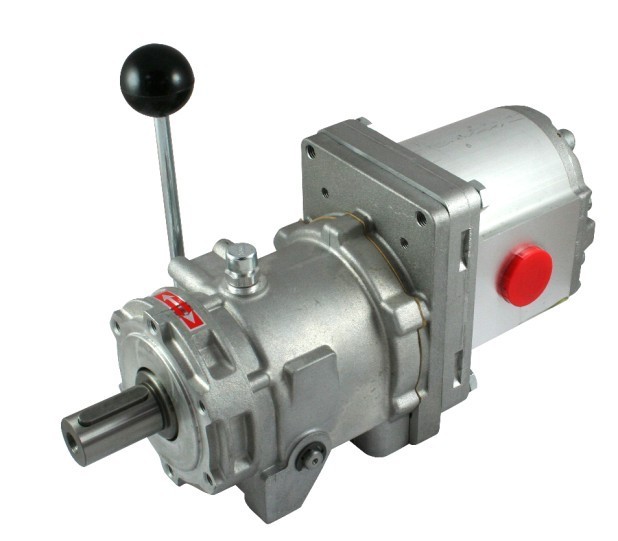

Reversible hyd mech clutch pump assembly 79.2 l/min
REVERSIBLE HYD MECH CLUTCH PUMP ASSEMBLY 79.2 L/MIN
REVERSIBLE HYDRAULIC MECHANICAL CLUTCH
This assembly will produce 79.2 l/min at 200 bar at 1800rpm using a 44cc group 3 pump
Direction of rotation - Reversible
The mechanical clutches are uni-directional and bi-directional. When coupled with our range of gear pumps we recommend to engage and disengage the pump when the directional valve is in the unload position at a speed of no more than 1800 rpm. In the reversible position the max engagement and disengagement speed is 1000 rpm.
Please check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees celcius under continuos duty cycle.
Specify the correct mechanical clutch.
Please check if you are unsure how to apply and use this product. Speed, flow and pressure have a big bearing on selecting the correct combination. If unsure please ask our technical department for assistance.
