Plans-qc turret fit logan lathe-south bend-atlas myford

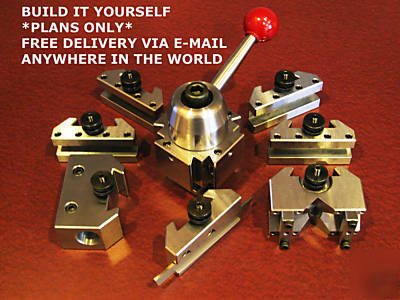

PLANS TO BUILD YOUR OWN QUICK CHANGE TURRET TOOL POST IN PDF FORMAT
NOW HAVE THE BEST OF BOTH WORLDS!-A QUICK CHANGE TOOL POST AND A TURRET

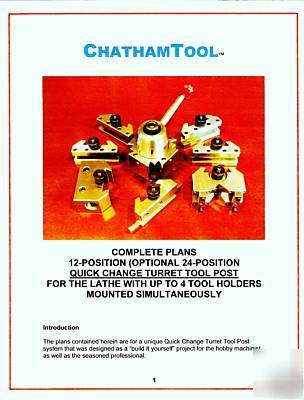

COMPLETE PLANS and CONSTRUCTION MANUAL (25 sheets) for building an industrial quality QUICK CHANGE TURRET TOOL POST for your lathe.
This quality "AMERICAN DESIGNED" turret tool post plan is for the "FULL SIZE" QUICK CHANGE TURRET TOOL POST and is recommended for all lathes from 9" swing and up.
* 12 position positive indexing with detents (indexes every 30 degrees).
* Optional 24 position indexing with detents (indexes every 15 degrees).
* Customizable to fit any lathe from 9" to 14" swing (.813" minimum vertical center distance required from the centeline of lathe headstock to top of compound cross slide).
* 2-3/4" quick change square turret tool post holds (4) tool holders simultaneously.
* Tool holders are quickly changed from the top using a T-handle hex wrench.
* Tool holders are interchageable with Dorian and Aloris.
* Measures 4" square with tool holders mounted.
* Plan includes fully detailed drawings for standard slotted tool holders, boring bar tool holder, parting tool holder and V-block tool holder.
* V-block tool holder can be used for milling keyways, flats on shafts, etc.
