KT7030 analogue digital dual display multimeter tester

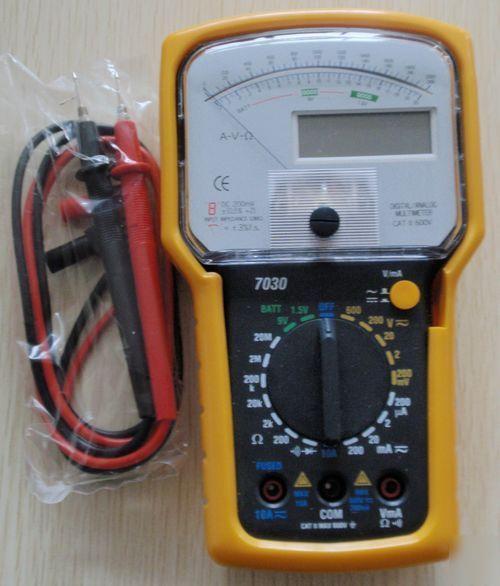

KT7030 Analogue Digital Dual display multimeter tester
Digital and analogue multimeter in a handy and compact housing
Dual display version(analogue+LCD)
AC/DC voltage measurement up to 600 V
AC/DC current measurement up to 10A
Resistance measurement up to 20 M
Acoustical continuity and diode check
Large display with mirror scale for accurate reading
Input resistance for voltage measurement 10M
Power supply 1 9V,IEC 6F22
DC Voltage : 0.2/2/20/200/600V
Tolerance: (3% full scale)/
AC Voltage: 0.2/2/20/200/600V
Tolerance: (4% full scale) / (0.8% +3 digit)
DC Current: 0.2mA/2mA/20mA/200mA/10A
Tolerance: (3% full scale) / (1% +3 digit)
AC Current: 0.2mA/2mA/20mA/200mA/10A
Tolerance: (4% full scale) / (1.5% +3 digit)
Resistance: 200/2K/20K/200K/2M/20M
Tolerance: (3%)/ (0.8% +3 digit)
Battery Test: 1.5V (100mA)/9V (10mA)
Diode Test: Test current approx.1mA
Continuity Test: 0 approx.30
Operating temperature: 0 C up to 40 C at RH<80%
Weight: approx.470g incl.battery
