Nsk nakanishi brushless motor spindle ems-3060A 1.18"

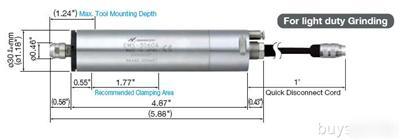

Nsk Nakanishi Brushless Motor Spindle EMS-3060A 1.18"
BRUSHLESS MOTOR SPINDLE EMS-3060A 1.18" (30mm)
The E3000 Series is capable of up to 60,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
Designed for high speed milling and drilling, etc on CNC lathes and special purpose machines. Compact size makes it very easy to incorporate into machine design.
-EMS-3060A Brushless Motor Spindle; Collet Nut (CHN-A) : Provided
Wrench (8 x 5) , (9 x 11) : 1 pc. each
EMS-3060A Brushless Motor Spindle Specifications
Motor Speed 60,000 min-1(rpm)
Maximum Motor Speed 60,000 min-1(rpm)
The maximum motor speed 60,000 min-1(rpm) is realized by using high performance brushless motor and ceramic bearings.
Maximum Motor Output with 350W Power Supply
350W for 1.18"( 30 mm) spindle.
Air-cooled motor uses a small volume of air (1.0 CFM) to minimize heat buildup and allow continuous operation.
Air pressure required is 36-44 PSI.
Spindle Accuracy is within 1 m (TIR).
E3000 series uses a short body that is hardened and precision ground for excellent durability.
Motor Connector Attaches Directly to the Back of the Motor / Spindle.
Simple screw-lock connector makes changing motors extremely easy. Electric and Air feed incorporated into a single connector.
