New ldk-11 heat pump solenoid coil reversing valve 24 v

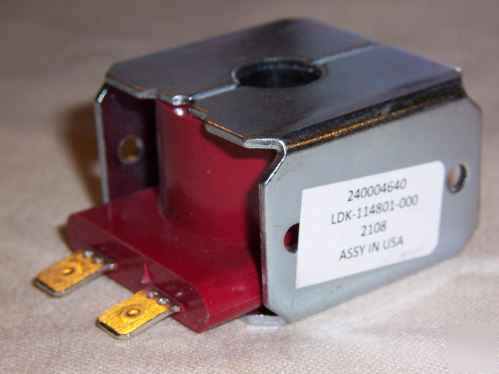

RANCO offers Type LDK solenoid coil. For use with RANCO Heat Pump Reversing Valves. color coded epoxy encapsulated, continuous duty, moisture resistant magnetic coil designed to operate the pilot valve controlling the Reversing Valve in air or water / ground source heat pumps. If your unit functions but blows heat when it should be cooling or blows cold air when it should be heating then this coil may be burnt out! Includes new plug on wire as that can also go bad if the coil fails. Part # on side is 240004640 LDK-114(***)-000 2108 ASSY IN USA. THE COIL ITSELF SAYS: LDK-11 FOR V0-4->V12-4 AC 24V 50/60 HZ 5/4 W. Specifications: Model: LDK-11 Color: Red Voltage: 24 V Frequency: 50/60 Hz Wattage (50/60Hz) 5/4 UL Thermal Class: A Cable Length: 48in LONG.
THE HOLE THAT SLIPS OVER THE REVERSING VALVE IS 0.4545" IN DIAMETER - TAD LESS THEN 1/2" AND IT IS 0.95" DEEP. SMALL HOLE IS 0.2115" IN DIAMETER. OVERALL ETAL PART IS 1" THICK, 1.5" WIDE AND 1.4" LONG. REVERSING VALVE IS FOUND IN THE CONDENSOR UNIT - THE OUTSIDE PART OF THE AC / HEAT PUMP. REVERSING VALVE IS THE THING THAT USUALLY HAS FOUR OF THE LARGE COPPER PIPES GOING INTO IT WITH ONE OR TWO VERY SMALL COPPER PIPES COMMING OFF FROM IT. IF YOUR NEED THIS OVERNIGHT PLEASE CONTACT US AFTER THE SALE SO WE CAN GET RIGHT ON IT! CLICK HERE FOR WEBSITE WITH TECHNICAL INFO.
Use the "ask seller a question" to contact us with questions or concerns. Please reference Part Number OP1126 when you contact us.
