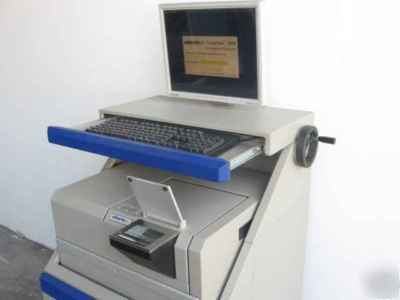

Identix tp-3500XC touchprint fingerprint scanner
FINGERPRINT SCANNER (LIKE NEW) Retails New for over $20,000.00
Description: IDENTIX TP-3500XC TOUCHPRINT FINGERPRINT SCANNER. Better Data Capture More pixels per inch for greater detail Breakthrough
optics and electronic imaging for unparalleled image clarity Contrast and gray scale highlight minutiae and pore detail Maximum Reliability No moving
parts for significantly lower maintenance costs No degredation in image quality over time No pads or coating to change for less downtime Less
Variability Easy to use for operators of all skill levels Overcomes real-world challenges like sweaty fingers TouchPrint Enhanced Definition 3500 Live
Scan has a built-in monitor and keyboard and fully-featured application software (on Windows XP or Linux) for tenprint capture, storage, and
transmission FBI Certification TP-5700 optics deck is FBI IQS Appendix certified and is incorporated into the TouchPrint Enhanced Definition 3500 Live
Scan Active Imaging Dimensions Roll/Slap Platen 3.2in x 2.0in (81mm x 51mm) Rolled Print Size Image compliant with FBI standard at 1.6in x 1.5in
(41mm x 38mm) Optical Resolution Enhanced Definition 500 ppi image capture output with square pixels Dynamic Range Greater than 8 bit, yielding
over 256 gray scale depth Image Quality Exceeds FBI IQS IAFIS Image Quality Specification Appendix F Calibration Factory calibrated and sealed;
automatic light-balance recalibration over time Optical Scanner Interface FireWireA IEEE 1394, OHCI compliant Optical Scanner Dimensions Deck
Width: 12.5in (32cm); Deck Height: 6.25in (19cm); Deck Depth: 14in (35.5cm) Package Weight 250lbs (113.4kg) Voltage/Power Requirements 110-
220/220-240 VAC, 50/60 Hz/ less than 14 watts Operating Environment Ambient temp: 40 - 95 F (5 - 35 C) Relative Humidity: 20% - 80% non-
condensing Housing Dimensions Width: 25in (63.5cm); Height: 44.5in (113cm); Depth 24in (61cm) Data Communication Supports V.42 external
modem, 56kbps synchronous communication, T-1 high speed digital communications, Ethernet LAN communications, TCP/IP/NFS/FTP protocols
Workstation Computer Pentium P4 2.8 GHz or greater with 256MB RAM Monitor 17 LCD flat panel display Standard Features Moisture Discriminating
Optics Patented optics ignore moisture on the fingerprint or on the platen Dual Beam Illumination Delivers uniform illumination across entire platen,
improving geo-accuracy Clean Image View Provides 70% or greater signal-to-noise ratio than Appendix F requirements, resulting in better ability to
read features and detail in the fine ridge structures Precise Image Distribution Results in 200% less geometric distortion than what is required to meet
Appendix F minimum requirements, resulting in enhanced accuracy of minutiae and ridge detail location Fine Feature Contrast Provides 300% higher
CTF/MTF performance than Appendix F requirements, resulting in enhanced image sharpness and clarity AntiSmear Technology Minimizes smudging
and smearing during finger rolls Software Features for Complete System Configurations PerfectScan High resolution live video display of platen
comparison software to ensure correct sequencing Options Demographic Data Import Open File Communication System (OFCS)
