Carol C0745 24G 10C o/s pvc multi-conductor 1000 ft

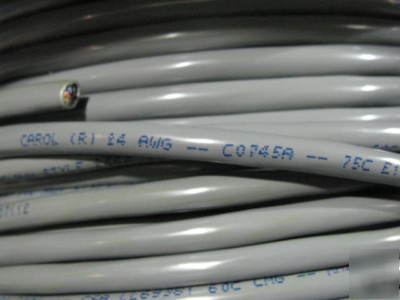

CAROL-C0745 24G 10C O/S PVC Multi-Conductor cable 1000 ft
* 24 AWG fully annealed stranded tinned
* Premium-grade, coIor-coded S-R PVC
* Color code: See charts below
* 100% Flexfoil aluminum/polyester
* with 25% overlap, foil facing out
* Stranded tinned copper drain wire
* Temperature range: 20 C to +80 C
* Computer interconnections
* Industrial equipment control
* Suitable for EIA RS-232 applications
* Suggested voltage rating: 300 volts
* NEC Article 800 Type CMR (UL: 75 C)
* UL Style 2464 (UL: 80 C, 300V)
* RoHS Compliant Directive 2002/95/EC
* Designed to meet UL 70,000 BTU
* Passes CSA CMG Flame Test
