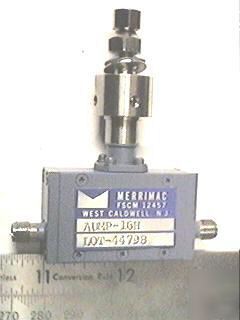

Merrimac preset attenuator aump-16H 7-11GHZ 0-15DB sma
SMA CONNECTIONS WITH LOCKING NUTS
Frequency Range: 7.0 to 11.0 GHz
Operating Temp.: - 55 to +85 C
1. The AUM/AUMP-16H series has been designed for wideband ECM systems and other microwave applications in the 7 GHz to 11 GHz frequency
band where precise attenuation must be maintained over a wide variety of military and laboratory environments. Applications include signal and
LO power control, automatic level control and impedance matching.
2. The AUM/AUMP-16H series of attenuators use ferrite absorption of microwave energy for long term stability and high reliability. They meet the
applicable requirements of MIL-A-24215 and can be supplied screened to meet specific military and commercial high reliability applications.
AUM & AUMP-16H MICROWAVE ATTENUATORS
7 to 11 GHz / 0 to 15 dB / Ferrite / Excellent Temperature Stability / MIL-E-5400 Class 3 / SMA
For further information contact
MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / (***)-575-1300 / FAX (***)-575-0531
