Hp 8591A option 010, 021 "with tracking generator"

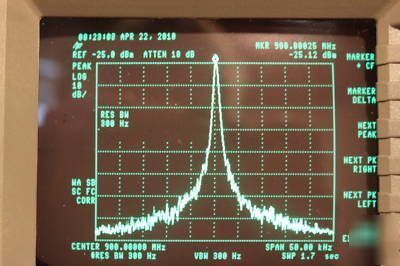

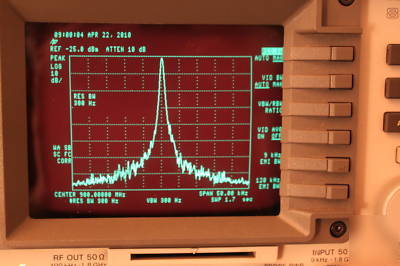

Some pictures shows a 900 MHz signal with SPAN of 50 kHz, RBW 300 Hz (after the UP and DOWN arrow or Center Freq keys where push).
The Agilent HP 8591A used Spectrum Analyzer has over 100 functions and is controlled either from the front panel or over the optional HP-IB interface.Advanced marker functions measure: the 99% power bandwidth of a signal; the 3 dB points of a signal; frequency; amplitude; amplitude and frequency differences on a signal; and highest peaks on a signal. The Next Peak button moves the marker to the next highest signal, simplifying harmonic measurements. Other measurement functions on the 8591A include: percentage AM; signal-to-noise ratio; and the FFT. Store/recall up to nine complete front-panel states in battery-backed RAM.
The screen is very clear and bright.

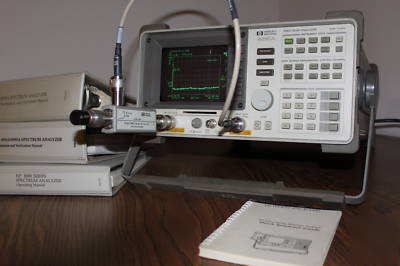

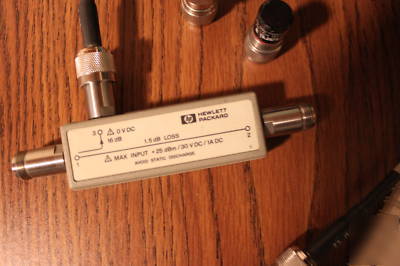

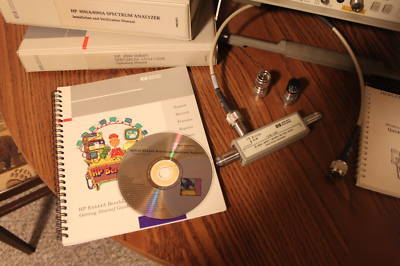

This package include Manuals, Return Loss kit (directional coupler HP 86205A, Narda 50 ohms termination (18 GHz), coaxial cable HP 8120-6469). The Return Loss kit is a 2,500$ value.
BenchLink Software is included (with the 32 bit up-grade)
