Dci 1200 liter 316 stainless jacketed reaction tank

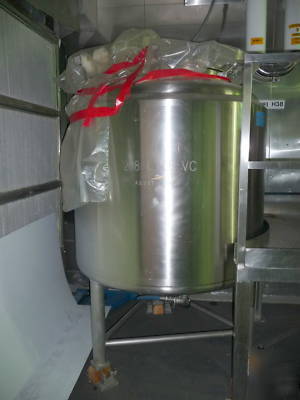

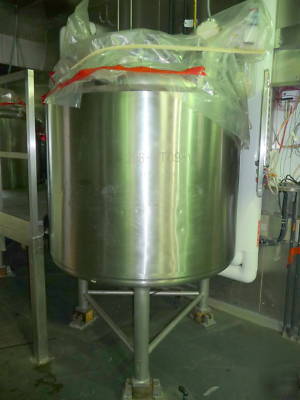

DCI 1200 Liter Stainless Steel Jacketed Tank
* Vessel MAWP 42 PSI @ 300 degrees F
* Min. Design Metal temp. -20 @ 42 PSI
* Jacket MAWP 115 PSI @ 347 degress F
* Min. Design Metal temp. -20 @ 125 PSI
* Ser # 93PH47151A & 93PH47151B
* 55 1/2" DIA. X 38" Straight Side
* Vessel and Jacket A.S.M.E. "U" Stamped

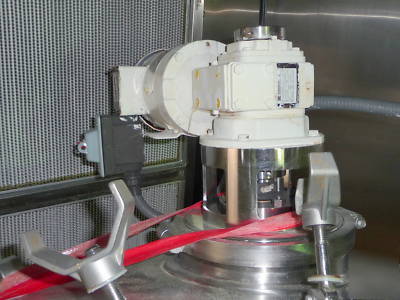

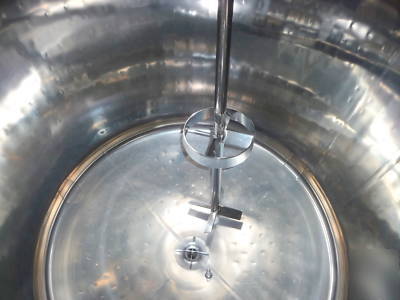

* Top Mount Agitator 1 HP 1750 RPM Baldor
* Dimple Jacketed Area 42 Sq. Ft. Total
* Estimated Empty Weight 1200 lbs.
* CIP Flow Rate 52 GPM @ 15 PSI
* (3) 1 1/2" Tri-Clamp Inlets
* Have copy of Original Drawing
