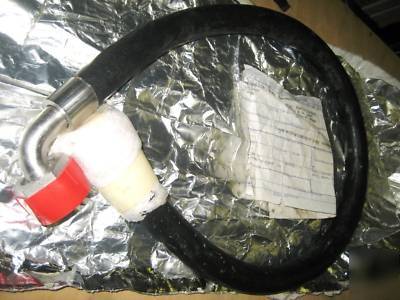

5336355-008 200-2819 12 unjf raytheon hose swivel
Part#: 5336355-008, 5336355,55031-008, 6351-0400, 92002-8
Item Name: Nonmetallic Assembly Hose
Inside Diameter: 0.750 in. nominal
Temp Rating: -40.0 deg rees Fahrenheit and 160.0 degrees Fahrenheit
Outside Diameter: 1.140 in. nominal
First End Thread Direction: Right-Hand
Inner Conveying Tube Material: Plastic, Polytetrafluoroethylene
Angle Between Rigid Elbow Fittings in Deg: 90.0
Burst Test Pressure: 900.0 lbs. per square in.
Layer Composition and Location: 1st Layer Braided Polyamide Cord
Layer Composition and Location : Outer Layer Molded Rubber, Neoprene
Max. Operating Pressure: 225.0 lbs. per square in.
First End Thread Quantity Per In.: 12
First End Thread Series Designator: UNJF
First End Nominal Thread Size: 1.313 in.
Hydrostatic Test Pressure: 450.0 lbs. per square in.
Inside Surface Condition: Convoluted
Measuring Method and Length: 39.000 in. minimum working and 41.00 in. maximum working
Media For Which Designed: Ethylene Glycol
