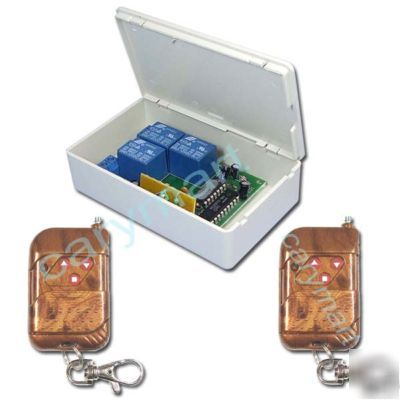

12V DC Motor Wireless Controller (Climb and Descent)
DC12V Motor RF Remote Control Transmitter & Receiver
* Receiver: S1F-DC12 (Inversion Control Mode / DC12V)
* Wireless control, easy to install.
* Control motors of Fan, Pump, Electrically operated Winches/ Doors / Windows / Blinds or Other Appliances with voltage DC 12V.
* You can rotate the motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
* Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
* One/ several transmitters can control one/ several receivers simultaneously.
* If you use two or more receivers in the same place, you can set them with different codes.
* Transmitting Frequency: 315MHz / 433MHz
* Control Mode: Inversion (Press button -> Positive rotation; Press button -> Reversal rotation)
* Decode: Fixed code by soldering
* Power Supply (Operating Voltage): DC 12V
* Relay: 7A/240VAC, 10A/125VAC, 10A/28VDC
* Working Voltage Range of Relay: DC 12V
* PCB size: 74mm x 52mm x 20mm
* Case size: 100mm x 60mm x 26mm
* Remote Control Distance: 100m / 300ft (theoretically)
* Encode: Fixed code by soldering
* Unit size: 58mm x 39mm x 16mm
* Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
1) Connect DC 12V power supply to terminals 1 and 2, connect DC motor to terminals 5 and 6, and connect a light to terminals 3 and 4.
2) Press button and hold: terminals 5 and 6 are the output of DC 12V, motor rotates in the positive direction.
Release button : terminals 5 and 6 no output, motor stops.
3) Press button and hold: terminals 5 and 6 are the output of DC 12V, motor rotates in the reversal direction.
4) Press button : terminals 3 and 4 are the output of DC 12V, turn on the light.
Press button again: terminals 3 and 4 no output, turn off the light.
E-mail to us - ****@carymart.com if you have any more questions.
