RKPT40 project pcb for pic® micrcontrollers blank pcb
RKPT40 Prototype Project PCB for 40 pin PIC Micrcontrollers Blank PCB
Brand New RKPT40 Prototype PCB - Blank PCB
Large prototyping area with 0V, 5V and 12VDC rails
Only the PCB is supplied, no components are included

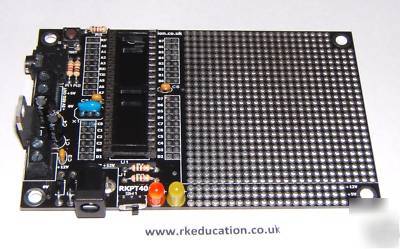

The picture shows a built unit
Great for projects using PIC Microcontrollers*
Designed for use with all 40 pin PICs
Can be bootloaded via a stereo socket
Compatible with your existing flowchart software
High quality double sided, black PCB
For more information and instructions please visit
www.rkeducation.co.uk/rkpt40.htm
DC socket or terminal block power input
12VDC input is regulated with a 7805 and a regulated 5VDC is outputted via a terminal block
Each pin is labelled on the PCB for ease of use
Great for education and hobbyists
We have lots of these available and lots of other products that are great for hobbyists
*This PCB has been designed and manufactured by rkeducation, it is not a Rev-Ed part and we have no connection with Rev-Ed. PIC and PICAXE and registered trademarks of Microchip INC. we have no connection with Microchip INC. If you need more information please contact us
