Grayhill; adjust. stop rotary switch #56BSDP36-01-1-ajn

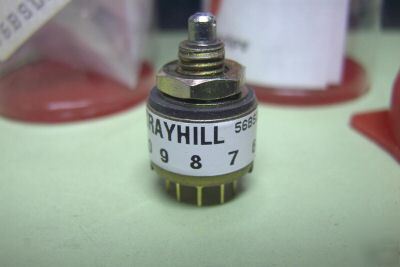

Grayhill Rotary Switch #56BSDP36-01-1-AJN. This is a "screwdriver slot shaft" style, with a shaft/panel seal. The switch has adjustable "stops" up to 10 positions. It is a PC Board Mount terminal style.
The panel is sealed by an O-ring at the base of bushing. Shaft is sealed by an O-ring inside the bushing. After the switch is mounted, seals do not alter the dimensions of the unsealed style.
Two "stop" pins and an adhesive backed sticker is temporarily removed to locate stop pins as desired to limit the shaft rotation. All dimensions are identical to the fixed stop switch counterpart. This "adjustable stop" feature provides for immediate "prototypes"!
All instructions for making the above adjustments are included with the switch.
This 1/2" Diameter, 200 MA switch, requires minimum distance behind the panel.
This switch is of "Industrial Quality", with an "Economic Price"! These may be purchased through a national distributor, but at significantly "higher prices", with a "minimum quantity" purchase usually required.
