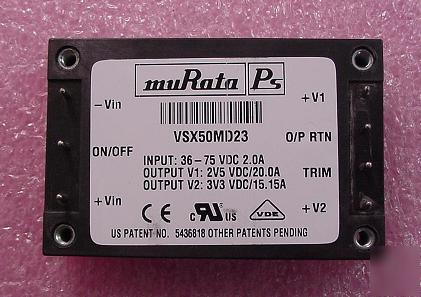

Dc/dc converter VSX50MD23 48V in, dual out 2.5V/3.3V
* Manufacturer: Murata VSX50MD23
* Very Nice, Quality 50W Dual Output Quarter Brick DC/DC Converter.
* 48V input (range is 36-75V) at 2.0A
* Output: 2.5V at 20A and 3.3V @ 15.15A
* Pricing is for a single unit. These are unused and in excellent condition.
DESCRIPTION: The VSX50 Series are 50 Watt, compact, high-efficiency, high-density dual output converters with a 36-75V input and 2.5Vdc and 3.3Vdc outputs. The industry quarter-pack size of 2.3" x 1.5" x 0.5" coupled with 89% efficiency is an industry high-density breakthrough.
These converters utilize V Series high density technology. The very high 89% efficiency minimizes the requirement for heat-sinking and the low output ripple minimizes the need for additional filtering. For maximum flexibility, power can be traded between outputs as required. The VSX50 Series feature virtually all of the options required by design engineers but not at the competition's typical additional price for each option. This multitude of features are standard on the VSX50 Series.
