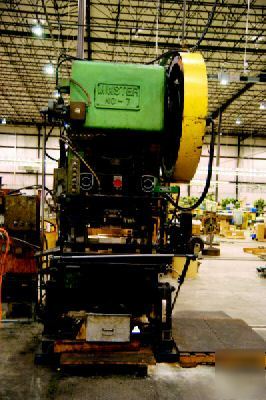

71 ton minster o.b.i. press #24934
New 1950, Serial No 7-6767, Model 7
Stamping Specialties Feed System
Tonnage Capacity........................ 71 TON
Stroke Length........................... 4"
Shut Height to Bolster, (SDAU).......... 9"
Ram Adjustment.......................... 3.25"
Ram Area, L-R x F-B..................... 13.5" x 14.5"
Bed Area, L-R x F-B..................... 35" x 22"
Width of Opening in Back................ 18"
Strokes per Minute...................... 80 SPM
Motor Horsepower/RPM.................... 7.5 HP/900 RPM
Floor Space Required, W x D............. 6'4" x 3'4"
Overall Height.......................... 9'0"
Weight, Approximately................... 15000 LBS
