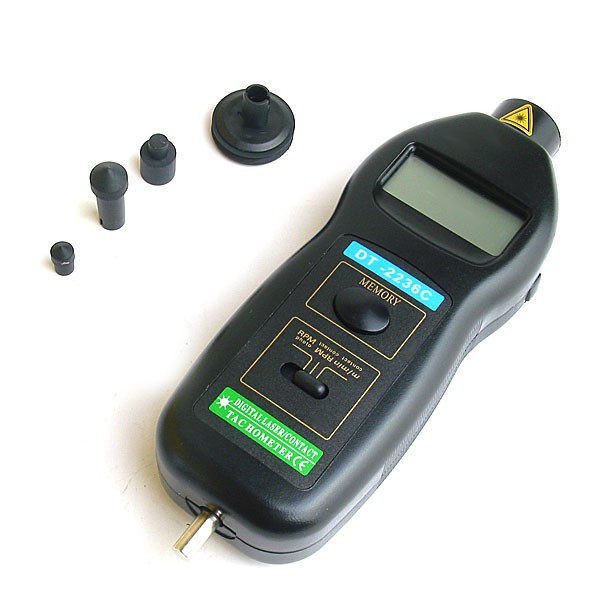

0.5-100,000RPM digital tachometer 2IN1 laser & contact
0.5-100,000RPM DIGITAL TACHOMETER 2in1 LASER & CONTACT
Tachometers are used for counting the revolutions of an engine per minute, and this multi-function digital tachometer allows you to do that accurately and quickly both from a distance by using the laser, or, if you prefer, by using the contact function and attachments.
Unlike some lesser models on the market, this tachometer has a fantastic, wide measuring range of 0.5 to 99,999 RPM.
An advanced one chip microcomputer LSI-circuit and crystal time base provide consistently highly-accurate readings in the fastest time possible.
The ergonomically designed casing fits comfortably in either hand and is made from ultra light, yet durable plastic, protecting the delicate internal workings and ensuring maintenance free performance for years to come.
* Multi function - switch between laser and contact reading to suit the job in hand
* Use contact function to read RPM, m/min
* Wide measurement range of 0.5 to 99,999 RPM
* Clear LCD display with insignificant zero suppression
* Lightweight tough plastic is ergonomically shaped to fit comfortably in either hand
* Display: 5 digit LCD with function annunciation
* Photo tach measurement: 2.5 to 99,999 RPM
* Contact tach measurement: 0.5 to 19,999 RPM
* m/min surface speed: 0.05 to 1,999.9 m/min
* Resolution of photo tach: 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (over 1,000 RPM)
* Resolution of contact tach: 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (over 1,000 RPM)
* m/min surface speed: 0.01 m/min (0.005 to 99.99m/min) or 0.1 m/min (over 100 m/min)
* Photo detection distance: 50 to 500mm or 2 to 20"
* Memory: last maximum value & last minimum value
* Battery: 4 x 1.5V AA (UM-3) batteries (sorry not included)
* Operating temperature: 0-50 C (32-122 F)
* Screen size: 5 x 2.4cm (1.9 x 0.9 ")
* Unit size: 7.5 x 22 x 4 cm (3 x 8.5 x 1.5")
* Weight: 300g/ 0.65lb (inc battery)
* Sturdy carry/storage case with internal padding
* Contact speed measurement fitting
* Contact rotational speed measurement fitting
