Supco lcv logit current & voltage logger

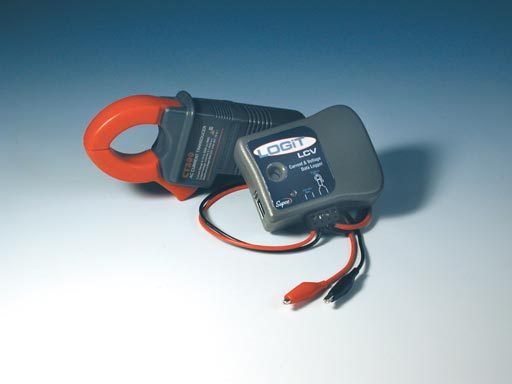

Supco LCV LOGiT Current & Voltage Logger
For Simultaneous Current and Voltage Monitoring such as Compressor and Fan Run Cycles, Troubleshooting, Intermittent problems, Verification of Power Conditions
* Stores over 10,000 measurement points
* 1 second to 18 hour sample rate; 1 second increments
* Custom user identification (30 Characters)
* Over/Under Alarm threshold settings
* User selectable Recording Start (specify date & time, immediate after setup or on door close)
* 20 month battery life (at 1 minute sample rate)
* One PC Software operates with all loggers (LLS not included)*
* USB interface optional (USBS)
10,750 points for Current & Voltage
21,500 points for Current OR Voltage
Over and under alarms for Current & Voltage
32 F 140 F (0 C 60 C) using Alkaline Battery.
-40 F 150 F (-40 C 65 C) using Lithium Battery.
Single point offset calibration available through software. Current & Voltage are factory calibrated.
3" x 2.5" x 1.1" (7.6cm x 6.4cm x 2.8cm)
9V Alkaline or Lithium battery
20 Months using Alkaline Battery
40 Months using Lithium Battery
*NOTE: Logger needs optional LLS Software Package to program data logger and download data for analysis. It is not included with any LOGiT Data Logger.
