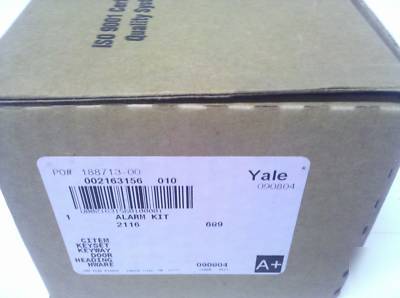

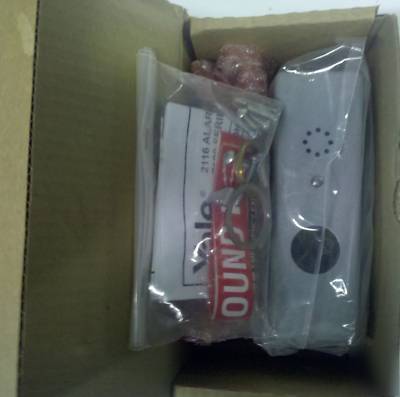

New yale alarm lock kit for rim exit device, in box
Yale s 2116 Alarm Kit for 2100 Series Rim Exit Device
The 2116 Alarm Kit affords a simple and economical means of providing the 2100 Series exit
device with an audible alarm. This alarm is battery operated and completely self-contained. It
serves as the hinge stile mounting bracket for the 2100 series exit device and operates when the
device flat bar is depressed. It can be retrofitted to any existing 2100 series exit device. The
Alarm Kit has a non-ferrous cover which is spray finished to match the exit device.
Alarm kit requires only drilling and tapping 3 holes. Can be retrofitted to existing 2100 series exit
Alarm sounds loud, piercing tone (measures 90 to 96 decibels (Db) at 10 feet).
A mortise cylinder (not supplied unless specified) arms and disarms the alarm. A Red LED indicator
will illuminate every 30 seconds when the alarm is armed and in stand-by.
Arming Delay/Authorized Egress:
10-second delay (after arming) permitting egress (by turning key clockwise).
Removing cover will activate alarm. Battery is protected by a hardened steel shield. Alarm will
continue to sound even when alarm switch wires are cut.
Factory preset for instant alarm. Selectable feature for alarm to sound when exit device touchbar is
depressed for more than 2 seconds. (This feature is selected by a switch on the circuit board.)
Alarm is armed by turning key clockwise. Low audible chirp indicates alarm has been activated.
Alarm will sound when the exit device touchbar is depressed. Factory preset for standard alarm
mode which automatically resets after 5 minutes.
Alarm sounds continuously when the exit device touchbar is depressed. Alarm must be manually
reset by keyswitch. (This feature is selected by a switch on the circuit board.)
On stand-by conditions (with few or no alarm activations) battery life is approximately one year.
The electronic circuit will sound an audible beep every 30 seconds when the battery power drops
Alarm Kit is complete with a decal, warning user of the alarm, EMERGENCY EXIT ALARM WILL
2-1/2" high, 2-3/8" deep, 7" long
Chassis, stainless steel; cover, non-ferrous.
Mortise cylinder (refer to page 18 for details). Clockwise turn arms the alarm;
counterclockwise turn disarms or silences the alarm. (Cylinder not included.)
Internet price on this is around $300-$400
