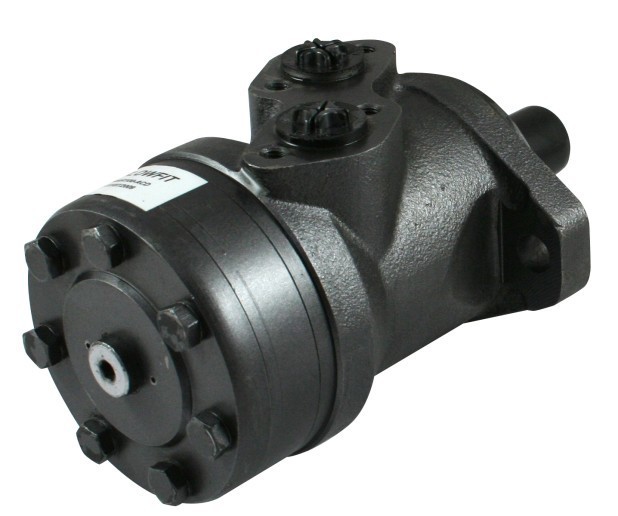

Flowfit hydraulic motor 250 cc/rev AMP250ACD
FLOWFIT HYDRAULIC MOTOR 250 CC/REV
Hydraulic motor suitable for many low-speed applications, eliminating gears, shafts, chains, belts, pulleys and other speed reduction components. All motors are compact and light in weight in proportion to the torque and power delivered, all are fully reversible.
Use these motors on applications such as grain elevators, post hole diggers, lift trucks, fertilizer spreaders, winches and mowing machines.
The AMP series motor comes in a small envelope size and provides an economical solution when high torque is required. Industry standard housings and shafts enables the AMP motor to interchange with most makes of motor. The high pressure shaft seal offers superior seal life and performance.
* Max continuous speed 240 rpm
* Max intermittent speed 302 rpm
* Max continuos torque 35.1 daNm
* Max intermittent torque 46.8 daNm
* Max power output continuos 7.4kw
* Max power output intermittent 12kw
* Max oil flow continuous 60 l/min
* Max oil flow intermittent 75 l/min
* Max continuous inlet pressure 160 bar
* Max intermittent inlet pressure 175 bar
* Max peak inlet pressure 210 bar
