Digital lcd voltmeter ammeter ohm meter multimeter lead

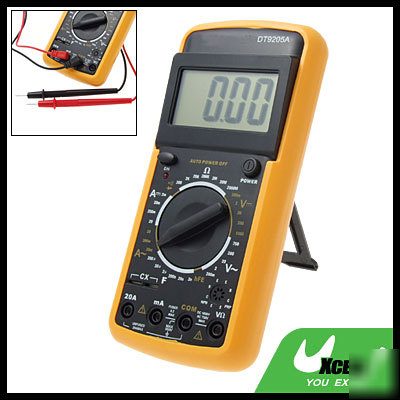

Digital LCD Voltmeter Ammeter Ohm Meter Multimeter Lead
* Digital LCD Multimeter Voltmeter Ammeter Ohmmeter
* Digital LCD Multimeter with auto power off and auto zero function
* DH button for maintaining data.
* Single 32 position switch for function and range
* Voltage measurements of the Voltmeter: AC 750V and DC 1000V max.
* Current measurements of the Ammeter: DC 10A max and AC 10A
* Resistance measurements of the Ohmmete: 200Mohm
* LED and Transistor measurement function
* Diode and transistor (HFE) test
* Capacitance measurements: 200uF
* Large LCD screen display and shake resistant
* Durable soft plastic cover protection
* DC voltage scale: 200m/2/20/200/1000V
* Basic accuracy: +/- 0.5% ( +/- 0.25% for 200mV range)
* DC current scale: 2m/20m/200m/10A
* Basic accuracy: +/-1.0% (+/-2.0% for 20A range)
* Overload protection: 200mA 250V fuse (20A-range is not fuse-protected)
* Resistance scale: 200/2k/20k/200k/2M/20M/200M
* Overload protection: 220Vrms max for 15 seconds
* low-battery indication: yes
* LCD display size: 6.2 x 3.1cm
* Meter Size: 19 x 9 x 3.2cm (L*W*D)
* Power supply: NEDA 1604 or 6F22 9V battery (not include)
