> Best lever privacy locks, 93K0L15D-S3-605 bright brass

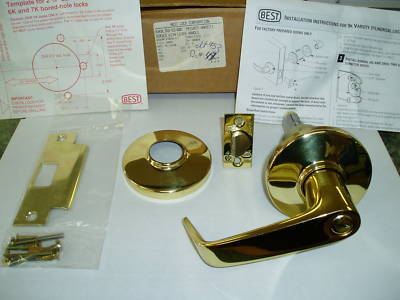

Best lever privacy locks, 93K0L15D-S3-605 bright brass
NEW IN BOX! Complete NIB Leverset! Save big!
Make offer, no reasonable offer refused!
American National Standard: ANSI A156.2, Series 4000 Grade 1 (formerly FF-H-106C Series 161.)
Finish BHMA US DESCRIPTION 605 3 bright brass 606 4 satin brass 611 9 bright bronze 612 10 satin bronze 613 10B oxidized satin bronze, oil rubbed 618 14 bright nickel plated 619 15 satin nickel plated 622 19 flat black 625 26 bright chromium plated 626 26D satin chromium plated 690 20 dark bronze
Chassis Critical latch and chassis components are brass or corrosion-treated steel. 2 1/16" diameter to fit 2 1/8" hole in door (Conforms to ANSI A115.2). Lost Motion feature available as an option.(see page 11 for special features)
Door thickness Available for 1 3/4"
Latch Solid brass 9/16" throw. Front 2 1/4" x 1 1/8" beveled.
Lever handles Lever handles are a high-quality zinc alloy. Trim components are brass or bronze.Body is approximately 1 5/8" in diameter; Handle is approximately 4 3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.
Mounting In addition to standard door preparation (ANSI A115.2 for 1 3/4" doors), two additional holes are needed for through-bolts. Through-bolts require two 5/16" diameter holes located at 12 o'clock and 6 o'clock positions.
Projection on door Approximately 2 3/4" when mounted on 1 3/4" door.
