New digital red led dc 2V volt panel meters rescalable

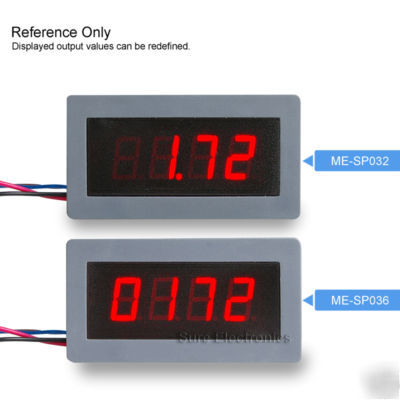

0.56" 4 Digital Red LED 2V Panel Meter rescalable
79.00(mm) X42.00 (mm) X25.00(mm)
As the fourth self-made panel meter by Sure Electronics,ME-SP036 has made the traditional application of panel meter history since its debut. In addition to the high-efficient yet flexible LED module that can provide us with low power consumption and much better brightness, it also offers a powerful solution called linear rescalability that allows engineers to repurpose the signal output ranges (tailored software offered) so that rescaled output can be displayed rather than direct voltage readings ranging from 0-2V. It is especially suitable for linear output applications in which sensors or other measuring equipments are used to measure pressure, weight, temperature, humidity, voltage and current.
ME-SP036 is built on an efficient LED module. Compared with traditional LCD panel meter, LED panel meter has clearer contrast and much bigger viewing angel. Its self-adaption to the ambinet light change makes it suitable for many applications and even readable in direct sunlight. It is not as power-hungary as most of the LCD panel meters that would require backlighting circuitry.
* The second self-made linear panel meter that supports linear output rather than directly displaying measured voltage signal.
* Self adapted to ambient brightness, not dazzling in night time
* Allows you to specify the display on power-up
* Miniature housing which facilitate installation and embedded applications
* Over 90% components are SMT-based, which are reliable and environment-friendly
* -10 to +60 operating temperature range
1. Pressure measurement - for use with pressure transmitter sensor
2. Level measurement-for use with depth or level sensor
3. Temperature measurement - for use with temperature transmitter
4. Humidity measurement - for use with humidity transmitter
5. Any physical variable having a 0-2V signal
1. 0.56" 4 Digital Red LED 2V Panel Meter (Rescalable) 1
