New air products cga 350 gas cylinder regulator, ** **

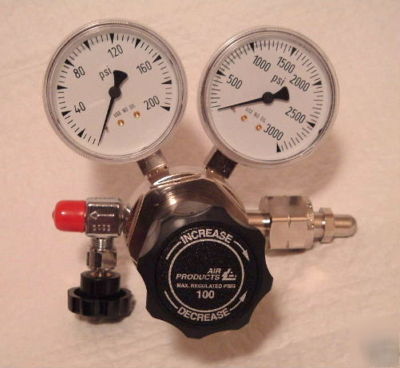

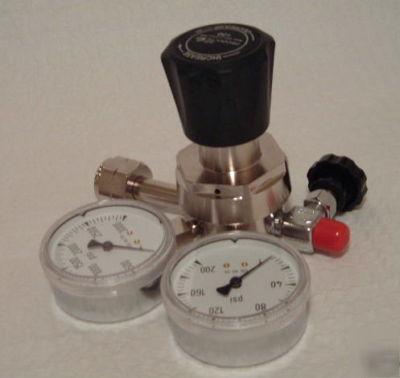

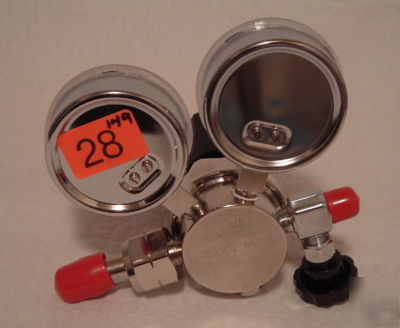

This regulator was manufactured in the USA by Air Products, Inc. The condition is New / Unused, in original factory packaging carton. Classified as a Cylinder Regulator, it is primarily designed for mounting directly to a compressed gas supply cylinder.
* Manufacturer: Air Products & Chemicals, Inc.
* Type: Single Stage, General Purpose
* Inlet Connection: CGA 350 (with integral sintered bronze filter)
* Maximum Inlet Pressure: 3000 PSIG
* Maximum Delivery Pressure: 100 PSIG
* Inlet Gauge: (2 1/2") 100-3000 psi
* Outlet Gauge: (2 1/2") 0-200 psi
* Application: Hydrogen, Natural Gas, Methane, Ethane, Ethylene, Carbon Monoxide
* Construction: Nickle-Plated, machined brass bar stock
* Diaphragm: Convoluted Stainless Steel diaphragm allows for accurate & stable pressure control. This specially designed diaphragm has no soft seal materials, thus enhancing good regulating performance without contamination.
* Additional Features: Secondary needle valve (outlet), & Relief valve
We will not be held responsible for accidental or intentional misuse occurring with this item.
Thank you for your interest in this very high quality compressed gas pressure regulator.
* Outlet threads of NEEDLE VALVE are 1/8" NPT (male).
