ADS8371, 16-bit analog-to-digital converter adc (2)

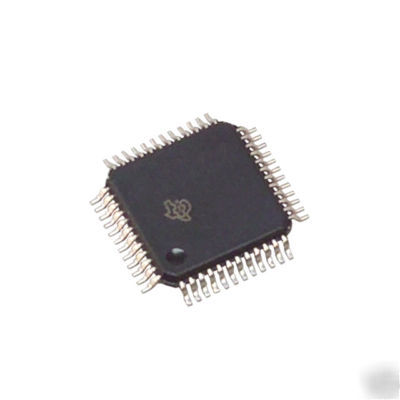

ADS8371IBPFBT, 16-Bit 750 kHZ Unipolar Input Micro Power Sampling ADC Converter w/ Parallel, 48 pin TQFP, Quantity 2, Texas Instruments.
The ADS8371 is a 16-bit, 750 kHz A/D converter.
The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold.
The ADS8371 offers a full 16-bit interface or an 8-bit bus option using three read cycles.
* +0.9 LSB INL Typ, 1.5 LSB Max
* 0.4/+0.6 LSB DNL Typ, 1 LSB Max
* Onboard Reference Buffer and Conversion Clock
* 0 V to 4.096 V Unipolar Inputs
* High Dynamic Range: 110 dB SFDR
* Very Low Offset and Offset Drift
* Low Power: 130 mW at 750 KSPS
* Wide Buffer Supply, 2.7 V to 5.25 V
* Flexible 8-/16-Bit Parallel Interface
* High Accuracy Data Acquisition Systems
