Zmd international model HD334 vacuum form machine.

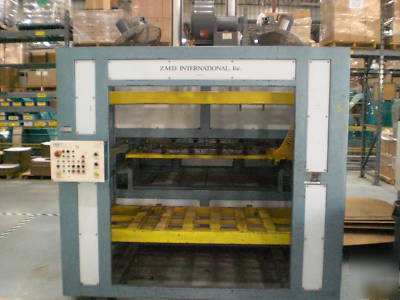

ZMD International Model HD334 Vacuum Form Machine.
ZMD International Model HD334 Vacuum Form Machine
Maximum Sheet Size is 48" x 48"
Paperwork showd a date of 1999. Seller bought it used and have had it for about 7 years.
The following was taken from the ZMD Website, this unit is older and used.
* HEAVY DUTY TUBULAR STEEL CONSTRUCTION.
* FORMING AREA: 36" x 36" UP TO 60" x 72". (SINGLE OR DOUBLE STATION).
* POWERFUL, AND ONE OF THE MOST ADVANCED PROGRAMMABLE CONTROLLERS IN THE INDUSTRY.
* 24" STROKE ON BOTTOM PLATEN AND 24" STROKE ON TOP PLATEN WITH 36" DAYLIGHT (ANY CUSTOM MADE STROKES ARE AVAILABLE UPON REQUEST).
* FAST TOOL SYSTEM TO REDUCE MOLD CHANGE TO 10 MINUTES MAX.
* 32 INDEPENDENT HEAT ZONES - MICROPROCESSOR CONTROLLED.
* ENERGY MANAGEMENT SOFTWARE - 60% LESS IN ENERGY COSTS OVER CONVENTIONAL METHODS.
* ALL KNOWN VACUUM FORMING TECHNIQUES ARE AVAILABLE, EITHER ON TOP OR ON BOTTOM PLATENS, PROVIDING SEMI PRESSURE FORMED QUALITY PARTS.
* BUSCH R5 POWERFUL VACUUM PUMP, QUIET OPERATION AND DIRECT DRIVEN TO PROVIDE END VACUUM OF 29.3 Hg. INCHES.
* POWERFUL PNEUMATIC SYSTEM THAT ENABLES FAST MOVEMENT OF THE PLATENS FOR FASTER CYCLE.
* THE MOST ADVANCED POSITIVE PNEUMATIC CLAMPING FRAME REQUIRES APPROXIMATELY 5 MINUTES TO CHANGE TO ANY DESIRED SIZE, WITHOUT USING ANY TOOLS OR EXTERNAL PARTS.
* FULL CONTROL ON THE MOVEMENT OF TOP AND BOTTOM PLATENS, ENABLES DEAD LOCK OF THE CYLINDERS.
* ELECTRIC CONTROL ON THE AMOUNT OF VACUUM TO BE SUPPLIED DURING THE PROCESS.
* PHOTOELECTRIC SENSOR MONITORS SHEET SAGGING CONDITIONS.
* THE HEATER PLATENS, TOP AND BOTTOM ARE MANUALLY ADJUSTABLE.
* THE SHEET CARRIAGE AND THE PLATENS MOVE ON LINEAR BEARINGS THAT RIDE ON HARDENED WAYS.
* FULLY AUTOMATIC AND TOTALLY COMPUTERIZED CONTROLS, THE FRIENDLIEST IN THE MARKET.
* POWERFUL HIGH SPEED COMPUTER WITH COLOR MONITOR DISPLAY FOR DATA SETTING AND RETRIEVAL, INCLUDES THE FRIENDLIEST SOFTWARE FOR INTERFACE.
* PRE-WIRED FOR DESIRED ELECTRIC SYSTEM.
Should you have questions, please contact Megan Lynn at (***) 484-4449 or email ****@GlobalMachineBrokers.com
